The Brake Bible

By Bill "BillaVista" Ansell
Photography: Bill Ansell
Copyright 2008 - Bill Ansell
(click any pic to enlarge)

Introduction

Why?

At first glance, it may seem that an article on brakes isn’t a terribly sexy idea.  After all, brakes don’t make you go faster, look cooler or sound meaner. But, few things are less enjoyable than driving a rig with lousy brakes. Not only can it be stressful and needlessly hard work, it can also be dangerous.  Good brakes can actually improve your overall abilities by allowing much better control of the rig at all times. Finally, with the recent dramatic increase in the popularity of “racing” forms of ‘wheeling competition, good brakes have become much more important.

What ?

So, my aim with this article is to help you better understand brake systems and the factors affecting brake performance; to dispel the many common myths and misconceptions, and to address important off-road factors that you won’t find covered by any other source.

By the end I hope that you will be able to:

  • Understand how your brakes work, and why they perform the way they do.
  • Accurately troubleshoot / identify causes of dissatisfaction with your brakes.
  • Accurately describe the performance / feel of your brakes using proper terminology.
  • Decide what modifications/components will work for you to help you achieve your objectives.
  • Select appropriate components and understand how they interrelate and work together (and sometimes why they work against one-another).
  • Be able to identify and avoid common misconceptions and bad advice

At the end I will also showcase a kick-ass brake system modification from which virtually any rig will benefit.

That said, this article isn’t a beginner’s guide to brakes – it is assumed that you are already familiar with the basic components. It’s also not aimed at maintenance – how to replace the brake pads on this or that model truck – there are many factory and aftermarket repair manuals that cover the topic well. Also, because this article is intended for off-road rigs, I won’t be covering aerodynamic braking or down force.  Finally, if for no other reason than I detest the damn things, I will not be covering drum brakes, but instead focusing on disc brake systems.

Actually, there are a number of good reasons why disc brakes are far superior to drums, including:

  • Better cooling – less likely to overheat and fade
  • Less susceptible to contamination from mud and water
  • Less maintenance
  • Much easier maintenance
  • Lighter
  • More pad-to-rotor contact area

So if you still have drum brakes on the rear of your rig, there’s plenty of good information in this article of interest to you, but I won’t be covering drum brake improvements – you’re far better off to convert to discs, whether you fabricate your own or use one of the many commercially available conversion kits. What I will cover, is how to adjust the rest of your system to accommodate newly installed discs in place of drums – but now I’m getting ahead of myself.

Table of Contents

Basic Brake Components

Each component in a properly functioning brake system must work in harmony with the other components for us to achieve maximum braking performance. We will cover each component; it’s selection, modification, and integration into the ‘system’ as a whole. For now, the basic components of a 4-wheel disc-brake system are:

  1. A pedal mechanism – for the driver to actuate the brakes. Also acts as a lever that serves to multiply the driver’s input via the “pedal ratio”.
  2. A master cylinder (MC) & reservoir  – contains hydraulic brake fluid to actuate the brake callipers and a piston to move and pressurize that fluid.
  3. Hydraulic lines – to convey the brake fluid to the brake callipers, and contain the hydraulic fluid, allowing it to be pressurized.
  4. Valves – To improve performance, a brake system may contain some of the following valves between the MC and the callipers: residual pressure valve, metering valve, combination valve, proportioning valve, or pressure limiting valve.
  5. Brake Callipers – located at each wheel, the brake callipers are hydraulically actuated clamps that clamp the brake pads against the rotors.
  6. Brake pads – located inside the callipers, the pads are the friction material that the callipers clamp against the rotors.
  7. Rotors – Bolted to the axle hub, the rotors slow and stop the rotation of the wheels when clamped by the callipers. They also absorb the heat created from the friction of the pads against the rotor.

How Brakes Work

It seems pretty simple – the driver presses on the pedal and the rig stops. But there’s quite a bit going on, and understanding it more fully (yes, including a little physics and math, sorry!) can really help us get the most out of our brake system.

Here’s what’s going on:

The driver presses on the brake pedal, actuating the piston in the master cylinder (MC).  The piston in the master cylinder displaces the hydraulic fluid in the brake lines. Because the system is sealed, the displacement (movement) of the hydraulic fluid moves the piston(s) in the brake callipers.  The moving callipers bring the brake pads into contact with the rotor. At this point, because there is no more movement possible in the system, pressure begins to build, and the pads are pressed harder and harder against the rotor, creating friction, and stopping the rig.

OPTIONAL GEEK TECH – MAY CONTAIN MATH AND/OR PHYSICS

Why does the rig stop?

The reason the rig stops is because of two important little pieces of physics – Newton’s First Law, and the Law of Conservation of Energy.

Wha??

Newton’s First Law, aka the Law of Inertia, states that:

“An object will remain at rest, or continue to move at a constant velocity*, unless acted upon by an unbalanced force.”

(*velocity just means the combination of speed and direction)

The law of conservation of energy states that:

“Energy can neither be created nor destroyed; it can only be changed from one form to another.”

To see how these laws of physics relate to brakes, let’s examine them with an example – driving a buggy down the road at a constant velocity (constant speed in a straight line), and then stopping.

As we’re driving down the road in a straight line at a constant speed the buggy has a constant velocity. In order to stop it, we must create an unbalanced force – that Newton’s First Law.

The buggy driving down the road also develops energy in the form of kinetic energy. (Energy is the ability to do work, and kinetic energy is the energy developed by moving objects.) In order for the buggy to stop, this kinetic energy must be converted to another form (it cannot be destroyed) – that’s the Law of Conservation of Energy.

In order to stop the buggy, then, the brakes must apply an unbalanced force to the buggy and convert the buggies Kinetic energy to some other form

The unbalanced force that stops the car is the increase in friction between the tires and the road that is created as the brakes slow the rotation of the wheels. When the brakes are applied, the friction between the pads and rotors also creates tremendous heat – converting the kinetic energy of the buggy to heat (and in some cases a little noise if the tires or brakes squeal.)

In summary, in order to stop a rig, the brakes must have three properties. They must:

  1. be able to apply a force to the rotor to decelerate the wheel’s rotation so that friction is increased between tires and road and the vehicle slows/stops; this ability is described as the brake system’s BRAKE TORQUE.
  2. be able to create enough friction between the pad and rotors to convert the vehicle’s kinetic energy to heat; this is called CLAMPING FORCE; and
  3. be large and heavy enough (the rotors) to absorb that heat without damage; this is called THERMAL CAPACITY.

Brake Torque

Brake torque in in-lbs (for each wheel) is the effective rotor radius in inches times clamping force times the coefficient of friction of the pad against the rotor. Brake torque is the force that actually decelerates the wheel and tire. There are two components – how hard the pads clamp the rotor (clamping force) and how far that clamping takes place from the center of the wheel hub. The larger the effective rotor radius, the further the clamping takes place from the wheel center, and the more torque generated by this longer “lever effect”. This is very similar to the manner in which a longer handle on a ratchet generates more torque than a short handle (for the same input). To increase brake torque it is necessary to increase the hydraulic pressure, the calliper piston area, the coefficient of friction between pad & rotor, or the effective rotor diameter.

Clamping Force

The clamping force that a calliper exerts, measured in pounds, is the hydraulic pressure (in psi) multiplied by the total piston area of the calliper (in a fixed calliper) or two times the total piston area (in a floating calliper), in square inches. To increase the clamping force it is necessary to either increase the hydraulic pressure or the calliper piston area. Increasing the coefficient of friction will not increase clamping force.

Coefficient of Friction

The coefficient of friction between pad & rotor is an indication of the amount of friction between the two surfaces. The higher the coefficient, the greater the friction. Typical passenger car pad coefficients are in the neighbourhood of 0.3 to 0.4. Racing pads are in the 0.5 to 0.6 range.  “Hard” pads have a lower coefficient but wear less, “soft” pads have a higher coefficient but can wear quickly. With most pads, the coefficient is temperature sensitive  - which is why sometimes racers need to “warm up” the brakes before they work well, and also why most brakes will “fade” when they overheat – the coefficient of friction is reduced as the temperature rises. For more info in coefficient of friction, see section on pads.

 Thermal Capacity

The brake rotors must be capable of absorbing the heat generated by the brakes as they convert the moving car’s kinetic energy into heat. The amount of kinetic energy a car has (and, therefore, the amount of heat the rotors must be able to absorb) depends on the weight of the car and the square of the speed of the car. The rotor’s ability to absorb this heat depends on its mass (weight), and on how well it cools. Exposed as they are to cooling airflow, this is one area where discs are superior to drums.

OPTIONAL GEEK TECH – MAY CONTAIN MATH AND/OR PHYSICS

The following equations and examples will help to clarify the concepts:

Brake Torque

Brake Torque Required is calculated as:

TBr = Friction Force on Tire x Rolling Radius of Tire

Where

TBr = Brake Torque Required (in. lbs.)

Friction Force on Tire = Vertical Force on Tire x Grip

Grip = coefficient of friction between the tire and road

The tire’s grip is difficult to measure, and can vary from 0.1 on wet ice to about 1.4 for a racing slick on a hot, dry track.  If you don’t have a value for your tires, use 1.0 as an average value.

The calculation of Friction Force on Tire is different for front and rear tires, takes into account weight transfer, and requires the calculation of vertical force on both tires first.

Front:
FF =  µ Ff / 2

Where:
FF = Friction Force on Front Tire
µ = grip (use 1.0)
Ff = Vertical Force on both front tires

and
Ff = Wc [1-(Xcg/l) + (µYcg/l)]

Where:
Ff = Vertical Force on both front tires
Wc = Weight of car (in lbs)
Xcg =  Distance from front axle to car’s center of gravity (in)
l = wheelbase (in)
µ = grip (use 1.0)
Ycg = height above ground of car’s center of gravity

Rear:
FR =  µ Fr / 2

Where:
FR = Friction Force on Rear Tire
µ = grip (use 1.0)
Fr = Vertical Force on both rear tires

And

Fr = Wc - Ff

Where:
Fr = Vertical Force on both rear tires
Wc = Weight of car (lbs)
Ff = Vertical Force on both front tires

By examining the above equations carefully, we can learn some valuable things.  For example, note that the equation for Brake Torque Required:

  • does not involve vehicle speed in any way
  • will vary for different tires and road (or trail) conditions
  • does involve tire/wheel radius – an important point for those of us running large diameter tires (do you think the car guys (who pretty much developed all the braking components we will choose from) have ever done the calculations for a 44, 47, or god forbid, a 54” tire?)
  • does involve the vehicle’s weight, height, and wheelbase – confirming what we knew from instinct –that a lower, lighter car will be easier to stop (and again – important to us since we are generally much taller and heavier than the average car)

Great, so we can calculate a theoretical value for how much brake torque our system needs to be able to deliver – but how do we determine what our brakes are capable of?

I’m glad you asked.

Clamping Force is calculated as:

CF = PM x AT

Where

CF = Clamping Force (lbs)

PM = Maximum hydraulic pressure (psi)

AT = Total effective area of calliper’s pistons (sq. in.) – for fixed callipers this is the actual area of the pistons, for floating callipers this is equal to 2 x the actual area of the pistons

Brake Torque Developed is calculated as:

TBd = CF(µL )Re

Where

TBd = Brake Torque Developed (in-lbs)

CF = Clamping Force (lbs)
µL = Coefficient of friction between brake pads and rotors (use 0.3, manufacturer’s specs, or estimate derived from the pad's DOT edge code (see section on pads))
Re = Effective rotor radius (in.) – measured from the center of the rotor to the canter of the brake pad.

Re = effective rotor radius

Ah-ha – now we’re getting to some more familiar terms – pressure, piston size, size of brakes.  Lets just dig a little deeper.

The maximum hydraulic pressure developed in your braking system can either be measured with an inline pressure gauge, or can be calculated as:

PM = Fp / Ap

Where:

PM = Maximum Pressure (psi)

Fp = Force on Master Cylinder piston (lbs)
     = Pedal Effort x Pedal Ratio (i.e. how hard the driver pushes the pedal multiplied by the pedal ratio.)

Ap = Area of the MC piston  (sq. in.)
      = 0.785 x Dp^2 (Dp^2 = the MC piston diameter, in inches, squared)

This is a very important equation. Note how the maximum pressure determines the brake torque, and the maximum pressure is the force applied DIVIDED by the area of the MC piston. This means, all other things being equal, the bigger the MC piston, the LESS pressure developed, and the LESS brake torque generated. The trade-off is, the smaller the MC, the less fluid is displaced per inch of travel, and therefore the greater the pedal travel required – more on this later.

Thermal Capacity

As previously discussed, the brake rotors must be capable of absorbing the heat generated by the brakes as they convert the moving car’s kinetic energy into heat.

The formula for the Kinetic Energy (K) in the moving car is:

K = (W * S^2) / 29.9

Where:

K = Kinetic Energy (ft. lbs.)

W = Weight of car (lbs.)

S = Speed of car (mph)

(Note: The root equation for kinetic energy is actually K = 1/2mv^2, the above version has a conversion factor included so we can use weight instead of mass and so the result is given in force units instead of energy units)

Nothing really surprising here – we know from instinct and experience that how much brake you need depends on how heavy the car is and how fast it’s going. Note though, that speed is squared in the equation – meaning that as the speed increases, the kinetic energy developed goes up by the square of the speed increase – for example, if speed doubles, kinetic energy increases by a factor of 4.  If speed triples – kinetic energy goes up by a factor of (3^2) or 9!!  This is a bitch for race-car drivers but not so much trail rigs. However – if you’re beginning to “race” your rock crawling buggy – be aware that your brake requirements are going to increase exponentially!

OK, so, moving rig has kinetic energy, kinetic energy must be turned into heat, rotors must absorb said heat. Big deal, so what?

Well, the equations that follow are used to calculate the temperature increase in the rotor for a given kinetic energy.  Remembering that kinetic energy depends on weight and speed, they also explain in incontrovertible terms (big word – means you can’t bloody argue with me about it!) exactly why “pinion brakes”, flat out suck, and why Patooyee’s rotors keep trying to melt off ! Remember – to add insult to injury “pinion brakes” are often used on Rockwell-axled rigs – which are big and heavy, and weight is a multiplying factor in the equation for Kinetic energy.

[As an aside – the previous discussion on brake torque also explains why some feel that pinion brakes work well “at slow speed”. It’s because the rotor is placed before the axle differential, meaning the pinion brake’s brake torque is calculated as above and then multiplied by a factor equal to the axle ratio.  This means, even with small callipers and rotors, they can develop tremendous brake torque. But – remember what we said about the requirements of a braking system – it must also have sufficient thermal capacity – and they simply do not. In fact, they’re dangerously inadequate in this regard!]

The formula for temperature rise is:

TR = Kc / 77.8 * Wb

Where:

TR = Temperature rise (°F)

Kc = Kinetic energy change (from start of braking to end of braking) (ft. lbs.)

Wb = weight of all rotors (lbs)

And:

Kc = Kinetic energy change (ft. lbs.)
     = Kb – Ka

where:

Kb = kinetic energy before stop

Ka = Kinetic energy after stop

Let’s do an example, because math is fun!

Imagine I’m stopping my 5000lb buggy from 40 mph to a dead stop.

First, let’s calculate the change in kinetic energy for a 5000 lb buggy from 40 mph to 0 mph – this remains the same regardless of the brake system.

Kb =  Wc * S^2 / 29.9
= 5000 * (40)^2 / 29.9
= 267 559 ft lbs

Ka = 0

Kc = Kb – Ka
= 267 559 – 0
= 267 559

Now, with ¾ ton truck disc brakes at each wheel, each rotor weighs about 21 lbs, for a total rotor weight of 84 lbs.

In this configuration, the temp rise of the rotor will be:

TR = Kc / 77.8 * Wb
= 267 559 / (77.8 * 84)
= 267 559 / 6535
= 41*F

If it were a hot day, after the stop my rotors could be at 141°F

Now, imagine I have pinion brakes with 2 small rotors, weight, say, 12 lbs each.

Now,

TR = Kc / 77.8 * Wb
= 267 559 / (77.8 * 24)
= 267 559 / 1867
= 143°F

On the same hot day, the rotors are now at 243°F!!

Make a few more stops, with insufficient time for the rotors to cool fully between them, and it’s easy to see how you can seriously overheat the small pinion brake rotors!

OK, so much for physics and math. Let’s move on now to the more practical side of how the braking system works.

Recall that brakes need to be able to do 3 things:

  1. Develop enough clamping force to create enough friction between pad and rotor to convert vehicle’s kinetic energy to heat.
  2. Develop enough brake torque to reach the limit of traction (lockup the tires) in all conditions, and
  3. Have enough mass to absorb the conversion of the rigs kinetic energy to heat without boiling the fluid, warping the rotors, cooking seals, etc.

And they must do all three with good and consistent feel!

The following “flow-chart” presents a stylized summary of the brake system and its interrelated components / factors.  Following it, we will examine each component in more detail:

The Pedal

As we have discussed, in order to apply the brakes the driver must be able to both move and pressurize the hydraulic fluid. That is, the master cylinder piston has the job of moving the brake fluid through the lines in order to bring the brake pads into contact with the rotor, and of pressurizing that fluid create clamping force.

The job of the pedal is to allow the driver to actuate the brakes, and also to multiply the driver’s input through a lever effect called the “pedal ratio.” In other words, the pedal transfers movement & force from the driver’s foot to the master cylinder piston.  This is a key concept – that brakes require both movement and force to operate, as the two are largely inversely proportional (that is: as one goes up the other goes down, and vice-versa) – we will return to this concept many times so keep it in mind.

The force the driver applies to the pedal when braking is called the “pedal effort”.  This amount of force, measured in pounds, is usually insufficient to operate the brakes - values ranging from 50-100 lbs are common.  As such, pedals are designed to operate like a lever, multiplying this force before it is applied to the master cylinder piston.  The amount by which any particular pedal design does so is called the “pedal ratio.”

The pedal ratio is calculated as the distance between the pedal’s pivot point and the centre of the foot pad, divided by the distance between the pivot point and the master cylinder push rod, as shown in the following diagrams.

Pedal Ratio = A / B

As can be seen from the diagram – the longer the pedal, the higher the pedal ratio, and the greater the mechanical advantage - meaning the lower the pedal effort required.

However, there are trade-offs. First, longer pedals are harder to fit – especially in cramped buggy cockpits.  Also, the longer the pedal, the greater the pedal stroke required to move the master cylinder piston – i.e. the further the driver must press the pedal.  The best design is a trade-off that will depend on many factors including desired pedal effort, master cylinder and calliper piston diameters, and the room available.  As far as pedal effort is concerned, 75 lbs is common for high-performance race-car brakes, 100 lbs feels hard, and 50 lbs is common in power-assisted brakes. Common pedal ratios range from 3 or 4:1 for power brakes up to 6 or 7:1 for manual brakes.

Of course, if you are using a stock pedal, you are pretty much stuck with the ratio it has, and must design the rest of the system to accommodate.

Just remember – the longer the pedal, the greater the ratio, the less leg force required but the greater the pedal travel required.  Longer pedals tend to deflect more under hard use, which can lead to a “spongy” feeling to the brakes.  You should always strive to use a pedal that will go from fully retracted to fully applied in as short a distance as possible – usually less than about four inches. Any more than this, and there will not be sufficient travel in the drivers leg to fully apply the brakes under emergency conditions where travel is suddenly increased – such as during brake fade or when there is air in the fluid.

Keep in mind that total brake pedal travel includes not only the stroke of the master cylinder piston, but also includes all slop and deflection of all parts in the system.

Designing and fabricating a good pedal set up requires engineering far beyond the scope of this article – especially since the brakes are such a critical safety system on the rig.

My advice is to either incorporate a rugged stock pedal system, or use one of the pre-fab systems available (in a variety of ratios) from many aftermarket vendors.  Choose a ratio that will work with the rest of your system and your personal preference for how the brakes will feel.  Common ratios are 3:1 for power brakes and 5:1 for manual brakes – but, you may desire a more custom ratio – like 7:1 for manual brakes if using a large diameter master cylinder.

One final word on pedal effort:

You can design a brake system for any value of pedal effort (values ranging from 50-100 lbs are common), and the pedal effort will largely determine how the brakes “feel” to the driver (excepting problems like brake fade and fluid boil).  For this reason, in the following discussion, assume, unless stated otherwise, that we are discussing the brake system with a “consistent and acceptable pedal effort”. For example, if we say, changing to a larger bore master cylinder (all other things remaining the same) will decrease pedal travel but reduce braking power, we mean “with the same pedal effort.”  No matter what the system, or mod's we make to it, we always have the option of just increasing pedal effort, but this is rarely experienced by the driver as an acceptable solution. i.e. one “could” design a system with undersize callipers and an oversize MC that could still stop the rig effectively if only we would push on the pedal with 300lbs – but clearly this would not be suitable.

Brake Hydraulics

OK, now we’re getting to the good stuff.

Recall that the brake’s hydraulic system must supply movement and force. The movement must be enough to take up all slop, clearance, and deflection of parts as well as move the calliper pistons sufficiently to bring brake pads into firm contact with the rotors.  The force must be enough to create enough friction between pad and rotor to stop the car.

It is the piston of the master cylinder that provides both the movement and the force, and the brake fluid that transmits both to the callipers.

Keep in mind, as you read this section, that the goal is to have a system that provides maximum force with small movement – i.e. we want to be able to brake hard without excessive pedal travel.

Force applied to the MC piston creates pressure in the brake fluid. The pressure is the force applied, DIVIDED by the area of the piston. Therefore, the smaller the master cylinder piston, the greater the pressure created.

System Pressure = Fp / Ap

Where:

Fp = Force on the piston (lbs.)

Ap = Area of the piston (sq. in.)

Example: Calculate system pressure for both a ½” diameter MC and a 1” diameter MC, given an input of 100 lbs.

Case one – ½” MC piston (d= 0.5):

P = Fp / Ap
   = 100 / pi * (d/2)^2
  = 100 / 3.14 * (0.5/2)^2
  =  510 psi

Case 2 – 1” MC piston(d=1.0):

P = Fp / Ap
   = 100 / pi * (d/2)^2
  = 100 / 3.14 * (1.0/2)^2
 =  127 psi

Recalling that the pressure created is a direct factor in how much clamping force and therefore brake torque is developed, it may seem that for the most powerful brakes, we would want to use a small MC piston.

But, the trade-off is the other component required of the brake system – namely movement.  Because the fluid is incompressible, any movement in the MC piston translates into movement of the calliper pistons (excluding expansion of hoses and lines, which should be minimal in a properly working system).  This movement in a hydraulic system is known as displacement and is calculated as the area of the MC piston multiplied by its stroke. Displacement is a volume, measured in cubic inches. Therefore, the smaller the master cylinder piston, the less displacement created.

Displacement (cubic inches) = Ap * Sp

Where:

Ap = Area of the piston (sq. in.)

Sp = Distance piston moves (stroke) (in.)

Example: Calculate displacement for both a ½” diameter MC and a 1” diameter MC, both with a stroke of 2 inches.

Case 1 – ½” MC piston (d= 0.5):

Displacement = Ap * Sp
   = 2 * [ pi * (d/2)^2]
   =  2 * [ 3.14 * (0.5/2)^2]
   =  0.39 cu. in.

Case 2 – 1” MC piston(d=1.0):

Displacement = Ap * Sp
   = 2 * [ pi * (d/2)^2]
   =  2 * [ 3.14 * (1.0/2)^2]
   =  1.57 cu. in.

Now we can clearly see that there is a trade-off between force and movement in selecting a MC piston size. The smaller the piston, the greater the pressure created but the less displacement produced (and therefore greater pedal travel required.)

So far, we have considered only the effect of the size of the MC piston, but of course in a brake system there are two pistons – the MC piston and the calliper piston (for calculations, the total area of all pistons in a multi-piston calliper act the same as a single piston of equivalent area in a single-piston calliper.)

There is, of course, a relationship between the pistons in the system that affects both force and movement.

Because the brake hydraulic system is a closed, sealed system, and brake fluid cannot be compressed, there is a law of hydraulics that we make use of to multiply force – that is, to apply more force at the callipers than the driver applies to the MC piston. It is quite simple, and quite possibly the most important concept in this entire article. It is this:

In a closed hydraulic system, pressure is equal over all surfaces of the containing system.

In our discussion of brake systems we will refer to the MC piston as the “input” piston and the calliper piston as the “output” piston.

The above law means that whatever pressure is created by the input piston is applied equally to the output piston. Because the output (calliper) piston is of much larger area than the input (MC) piston, this has the effect of multiplying force in the brake system.

The amount of force-multiplication thus achieved is known as the brake’s “Hydraulic Ratio” Hydraulic Ratio can be calculated or expressed a number of ways. It is the ratio of fluid displacement by the master cylinder to fluid displaced in the calliper pistons. It is also equal to the ratio of force applied to the MC piston  to the force generated by the calliper pistons. Hydraulic ratio is an important factor in the pedal effort equation, the higher the ratio, the less pedal effort is required (and the longer the pedal travel to achieve a given clamping force). The stiffer the calliper and the stiffer the pad, the higher the hydraulic ratio that can be employed.

For example, suppose we apply 100 lbs of force to a ½” diameter MC piston, we develop approx. 500 psi. This 500 psi acts evenly on all other surfaces in the system, including the calliper pistons. Suppose the calliper piston has a diameter of 3 inches. Multiplying our 500psi by the area of the calliper piston (~ 7 sq. in), we develop nearly 3500 pounds of clamping force at the brake pads.

The equation for this force-multiplying relationship is:

Fc = [Fmc * Ac] / Amc

Where:

Fc = Force at calliper piston (output) (lbs)

Fmc = Force on master cylinder piston(input) (lbs)

Ac = Area of calliper piston (sq. in.)

Amc = Area of master cylinder piston (sq. in.)



Brilliant!  From the equation we can see that, for a given input force (pedal effort), in order to increase the force at the calliper (what we’re after) we can either increase the area of the calliper piston(s) or decrease the area of the master cylinder piston (or both).

Of course, nothing is ever as easy as that!  We can’t forget the other factor – movement. Of course, there is once-again, a trade-off.

Unfortunately, both actions that increase force (good!) also increase pedal travel (bad!). That is, if we decrease the size of the MC piston we decrease its displacement - requiring us to increase its stroke to compensate – increasing pedal travel required.  Similarly, as we increase the size of the calliper piston, we increase the clamping force, but we also increase the volume of fluid (the displacement) required to move the piston a given distance – the distance it must move to bring the pads into contact with the rotor – this also demands an increase in pedal travel.

The equation for relating piston movements is:

Mc = [Mmc * Amc] / Ac

Where:

Mc = Movement at calliper piston (in.)

Mmc = Movement of MC piston (in.)

Amc = Area of MC piston (sq. in.)

Ac = Area of calliper piston (sq. in.)

So, we can see that, in order to increase the movement of the calliper piston without affecting pedal travel (Mmc), we would have to either increase the size of the MC piston, or decrease the size of the calliper piston – both actions that will decrease force!



A simple example with which we are all intimately familiar, that illustrates the concepts of force and movement in a 2-piston hydraulic system, is that of the common floor jack.

Consider the jack’s handle piston as the input piston (like the MC piston) and the piston that raises the lifting saddle as the output piston (like the calliper piston). Look at their relative sizes – the handle piston is tiny compared to the output piston – that’s how you can lift a 5000lb car by applying only 50 lbs to the jack handle (multiplied, of course, by the length of the handle – just like pedal ratio in a brake system.) The trade off, of course, is movement – you have to pump that handle a lot of times (much input piston movement) to raise the car even just a little (output piston movement). Just as in brakes, movement and force are a trade-off.  To produce great force without great input, you have to trade travel.

It’s my considered opinion that this interrelationship between force and movements in a 2-piston hydraulic system such as brakes is not very well understood. Consider as evidence the following scenario – a guy swaps rear disc brakes in place of drums on the rear axle of his rig. The resulting brake performance is predictably inadequate – obviously the calliper pistons are much larger than the previous drum-brake wheel-cylinder pistons – meaning that more fluid must be displaced to actuate them. The common advice found is to “swap in a larger master cylinder.”  That’s great from a movement perspective – the larger MC piston will displace grater fluid, moving the calliper pistons further for a given amount of pedal travel. BUT – we now know that the result will ALSO be a decrease in force at the calliper pistons (including the front callipers) than was achieved with the smaller MC.

So, what are we to do?  We really have only two options – either careful compromise – or power assist.  The beauty of power assist is that it allows us to substantially increase input force while maintaining pedal effort. This, in turn, enables the production of adequate force at the callipers while allowing the use of larger MC pistons and smaller calliper pistons, decreasing pedal travel. This is particularly important when you consider that most often, a single MC piston must actuate two callipers, (usually one for each of the front or rear wheels). That single MC piston must displace enough fluid to move two or more large-diameter pistons in the callipers.  Making it large enough to do so without requiring way too much pedal travel means we compromise the force multiplication in the hydraulic system. The result is, we either accept sub-optimal force (and resulting brake torque), or we must make up for the lack of hydraulic force multiplication by increasing input force. And the only way to significantly increase input force without requiring much greater pedal effort is to increase pedal ratio or add power assist.  Given that cockpit space availability place a very real upper limit on how much pedal ratio we can practically achieve – the answer becomes power assist.

Master Cylinders

The master cylinder is the heart of the brake system. Actuated by the pedal, its piston provides the force and the movement required to apply the brakes. When the pedal is released, an internal return spring returns the piston to its resting position.

Initially, as the pedal is pushed, the piston moves forward and fluid volume is displaced, taking up all clearances in the system. This fluid movement actuates the calliper pistons which extend and bring the brake pads into contact with the rotors. Because the fluid is incompressible, once the pads are in contact with the rotor, fluid movement stops and pressure rises. The harder the pedal is pushed, the greater the pressure achieved, the more brake torque is developed. How hard the driver can push the pedal, and therefore how much braking is achieved, is a function of input force (leg strength), combined with pedal ratio and any power assist.

The critical specs of a master cylinder are its bore (diameter of the piston) and stroke (how far the piston can travel – and therefore how much fluid it can displace when applied).  Common values for bore range from 5/8” to 1-1/2”, and stroke from 1” to 1.5”. Matching both to the requirements of your system is the key to satisfactory performance. Remember that, for a given input (pedal effort) the smaller the bore, the more pressure is generated but the less fluid displaced. Similarly, the longer the stroke the more fluid is displaced, but the greater the pedal travel required. As with most things, the best result is achieved through carefully considered compromise.

The most common type of MC in use today is known as a “dual-tandem” master cylinder.  It has separate circuits (pistons and outlets) for front and rear brakes (“dual”), with each circuit having its own independent reservoir.  The reason for this is safety – the theory is: if one circuit (front or rear brakes) should fail, there remains the other separate, independent circuit. The two pistons are arranged inline in a single bore (“tandem”).  The piston closest to the pedal is the “primary” piston, and the other is the “secondary” piston. Normally, the primary piston operates the front brakes and the secondary piston the rear.  Fluid reservoirs may be integrated or remote (attached to the cylinder via hoses). The most common design has the reservoir attached directly to the cylinder.

Often, master cylinders are listed as being either for disc/drum brakes or for disc/disc brakes (I’m ignoring older drum/drum systems). Obviously a disc/disc MC is designed to be used with 4-wheel disc brakes, and obviously a disc/drum MC with disc/drum brakes. Assuming that nobody in their right mind would convert disc brakes to drums, that means the only remaining issue of concern would be using a disc/drum MC with disc/disc brakes. When choosing a master cylinder, traditionally, you may have been told that there are three differences between disc/disc and disc/drum masters that preclude the use of a disc/drum master with disc/disc brakes. They are:

  1. Reservoir size
  2. Piston size (bore and stroke)
  3. Built-in valving.

Here’s my take on these three “issues”:

Reservoir Size

Disc brake reservoirs are larger than those for drum brakes. You will often see two reasons given for this:

  1. First, because the pistons in a disc brake calliper are MUCH larger than the tiny pistons in a drum brake wheel-cylinder, disc brakes require more fluid volume to be displaced than drum brakes – requiring a larger reserve of fluid for operation.
  2. Secondly, as disc brake pads wear, disc brake callipers are self adjusting. That is, the callipers only retract the piston just enough to prevent pad-to-rotor contact. Now, imagine you start with disc brake pads with ½” thick linings and you have a 4” diameter calliper piston. Every time you apply the brakes and the pads wear a little bit, the calliper retracts just a tiny bit less. By the time the pads wear to 25%, or 1/8” thick, the piston at rest will be .75” further out in its stroke than it was when the pads were new.  That .75” behind the piston must be taken up by additional fluid – and in the case of a 4” diameter piston, the additional volume required is given by (pi[d/2]^2 * 0.75) or about 8 cubic inches. Multiplied by two callipers (one for each wheel) and that’s 16 cubic inches of extra fluid reserve required to compensate for pad wear.  That’s much higher than the amount required to compensate for drum brake shoe wear. Therefore, disc brake reservoirs are larger than for drums because OEM designers must  design a reservoir for disc brakes large enough that the brakes will still function even if Joe Public doesn’t check the fluid or add a drop between new pads and completely worn out pads.

It is my opinion that the second reason is the only real practical reason for the difference in size between disc and drum reservoirs. I say this because I have never seen a drum MC reservoir that was so small it didn’t contain enough fluid to actually apply disc brakes – even though discs require more volume than drums.

With this in mind, we can see that, if we routinely check brake fluid levels as pads wear, reservoir size alone should not disqualify us from using a disc/drum MC with disc/disc brakes – especially if we’re using a large MC with moderate or small callipers (e.g. 1-ton MC with ¾-ton callipers).

Piston Size

It is true that disc brakes require both more pressure and more movement (volume) to operate than drum brakes. However, after reading this article, with your new encyclopedic knowledge of pressure and volume, you’re going to be selecting a MC for your brakes based on its specs – not on what the counter guy says the OE application was.  That is to say – given the right bore and stroke to match your system, there’s no particular reason that, based solely on piston bore and stroke, an MC originally designed for disc/drums can’t be used successfully on a disc/disc setup. That said, you will by now also understand that leaving in your old disc/drum MC after converting the rear to discs will not work well.

Built-in Valving

This one can be a deal-killer. If the MC in question was designed for disc/drums and has a built-in residual pressure valve, it will not be suitable for disc/disc brakes. See section below on valving for description of residual pressure valves. For now, the point is, know the MC in question and whether or not it has built-in valving (many do not). If it does, you would have to either modify it by removing the residual pressure valve to make is suitable for use with disc brakes, or choose a different master cylinder.

Power or Manual?

Again, you may see master cylinders marketed as being for manual or power brakes. This is based on two potential differences:

  1. Piston size (bore)
  2. Depth of  piston hole

Case one may be true if all you are doing is swapping MC’s.  Normally, manual brakes use a 1” bore or less MC and power brakes 1” and up. Leaving everything else the same, and using a “power” MC (large bore) with manual brakes will normally result in a “hard pedal” – that is, the pedal effort required of the driver, without power assist, becomes too great. However, we already know that we can compensate by using a greater pedal ratio or larger piston callipers. Therefore, when overall system design is considered, and if MC specs are selected carefully to match the pedal ratio and calliper piston size, there is no technical reason that a larger “power” MC couldn’t be used with manual brakes.

Case two is more of an issue.  The piston hole is the are where the actuating rod (from the pedal or booster) contacts the MC piston.  Normally it will be a “shallow” hole for a power brake MC as the power booster rod is captive between the booster and the MC.  With manual brakes, the actuating rod is attached to the pedal which is obviously a lever. In this case the MC piston hole is normally deeper to prevent the actuating rod from falling out when the brakes are released - a very useful feature! However, if you must use a “shallow piston hole” MC with manual brakes – it may be possible to overcome the problem by appropriately limiting pedal travel (in the direction opposite to brake application) to prevent actuating rod fall-out.

Summary

There are normally differences between disc and drum master cylinders and between power and manual master cylinders, as follows:

  1. Disc brake MC’s normally have a longer stroke and larger reservoir than those for drums
  2. Drum brake MC’s may have built-in residual pressure valves
  3. Power brake MC’s normally have a larger bore and shallower piston hole than those for manual brakes.

Normally, the easiest route is to use an MC designed for the type of brakes you have. However, when total system design is considered, as long as the specific specs and design of the MC in question are well understood, a much greater range of interchange possibilities opens up. That said, there are a few time-honoured rules of thumb:

  • Use a 1" or smaller bore MC for manual brakes
  • Use 1" or larger bore MC for power brakes
  • Manual brakes with 1" MC use a pedal ratio of approx. 6:1
  • Power brakes with a 1-1/8" MC use a pedal ratio of approx 4:1
  • Disc brakes require a minimum pressure of 800-1000 psi
  • Drum brakes require a minimum pressure of 400-500 psi

 Effects of Pedal Ratio and Bore Size on Hydraulic Pressure Output

Pedal Ratio Master Cylinder Bore Size (in.) Input Force (lbs) Pressure Developed (psi)
6:1 1 1/8 75 453
6:1 1 75 573
6:1 7/8 75 748

5:1 1 1/8 75 377
5:1 1 75 477
5:1 7/8 75 623

4:1 1 1/8 75 302
4:1 1 75 382
4:1 7/8 75 499

Assuming a pedal ratio of 5:1 - Note that going from a 1" to 7/8" MC bore increases the pressure to the callipers by almost 50% !!!

Valving

Residual Pressure Valve

A residual pressure valve is a simple, one-way, spring-loaded valve installed either in the master cylinder, or inline between the MC and the callipers/wheel cylinders. They operate by keeping a predetermined amount of pressure in the brake lines, even with the brakes released.  The internal spring determines the amount of residual pressure kept in the brake lines – normally 2 PSI or 10 PSI. There are two distinct uses of residual pressure valves:

10 PSI:  Drum brakes only. Because drum brakes don’t use callipers and are therefore not self-adjusting there are springs installed to retract the brake shoes away from the drum. A 10 PSI residual pressure valve is used in drum brakes to keep a little pressure in the lines to balance the return-spring force so that the shoes are maintained in close proximity to the drums. Without the residual pressure valve, the return springs would retract the shoes so far from the drums that excessive pedal travel would be required before the brakes are applied.

2 PSI: Disc brakes only. In many race cars and hot rods, the master cylinder is installed at a level below that of the callipers.  As such, gravity will draw the fluid from the callipers, causing it to drain back into the MC.  The result is a “spongy” feeling pedal and excessive pedal travel.  A 2 PSI residual pressure valve is installed in the brake line between MC and calliper to maintain slight pressure in the line and prevent fluid drain back. Note: This valve should only be needed if the MC is lower than the callipers.

I have often read where people have advised the use of a residual pressure valve to cure some other problem  - spongy pedal or excessive pedal travel (usually caused by insufficient volume from a too-small MC).  In cases like this, it may feel as if the RPV has cured the problem, but it is only a band-aid, masking the real problem. Use an RPV only for drum brakes or MC lower than callipers. Do not use an RPV as a band-aid. Find and fix the real problem!

When converting from drums to discs, you will need to remove any RPV in the rear circuit.

Metering Valve

Because of the return springs present, drum brakes take more movement (pressure and volume) to initially apply than disc brakes whose self-adjusting callipers keep the pads almost or lightly touching the rotors.  As such, in disc/drum brakes, a metering valve is used to prevent application of the front disc brakes below a pre-set pressure in the hydraulic system – usually about 75-150 psi – to allow the rear drum brakes to catch up. This allows the front and rear brakes in a disc/drum setup to work more evenly.  A metering valve is also known as a “hold-off” valve.

When converting from drums to discs, you will need to remove any metering valve in the circuit.

Proportioning Valve

As a car brakes, weight is transferred from the rear to the front (ahh – Newton and his Law of Inertia again!).  Because braking force should be applied to each wheel in proportion to the weight on it (more weight  - more braking force should be applied), there is a requirement to “balance” the braking forces to front and rear wheels. Failure to do so will result in premature lock-up of lightly loaded rear brakes and resulting skid and loss of control. In fact, in hard braking the front brakes perform up to 85% of the braking! In properly balanced brakes, neither the front nor rear breaks will lock up first – braking force is “proportioned” so that they lock up together.
A proportioning valve is installed inline between the master cylinder and the rear brakes (be they disc or drum) in order to reduce the pressure increase to the rear as the brakes are applied. The pressure to the rear is not prevented from increasing – the valve just ensures that, after a certain point (the “changeover pressure”) it rises at a lower rate than it does to the front brakes.  As the brakes are applied, full pressure is allowed to the rear up to a certain point. Beyond that point, the pressure to the rear increases at a reduced rate, preventing rear brake lock up. Most stock proportioning valves are preset by the OEM and are neither adjustable nor serviceable – they are of use only on the original vehicle for which they were designed. Aftermarket adjustable proportioning valves are available and are a must for any custom, high-performance brake system.  Stock proportioning valves are of little use in modified vehicles – whether it’s the brake system or simply the weight and balance (incl. suspension height) that have been modified.

Combination Valve

A combination valve is found in many OEM vehicles and may combine the functions of the metering valve, the proportioning valve, and a brake pressure warning-light switch.

Pressure Limiting Valve

Used on some disc/drum vehicles, a pressure limiting valve performs a similar function to a proportioning valve except that instead of reducing the rate at which pressure to the rear increases, it simply limits the maximum pressure available to the rear. That means, unlike with a proportioning valve, once you achieve that maximum pressure, no matter how hard you press the brake pedal, no more rear braking is possible. Inflexible, non-adjustable, and only marginally useful on very nose-heavy vehicles, they generally suck and should be avoided.

Brake Tubing and Hoses

I’ll keep this section short and sweet.

Use rigid hydraulic brake tubing as much as possible, and flexible hose only where necessary (to allow for suspension and steering movement). Even the best flexible hose expands more under pressure than steel hydraulic tubing. Hose expansion gobbles up that limited and valuable pedal stroke.

Stock-type rubber flex hoses are OK to use, but Teflon-lined, stainless-steel braided hoses are best. They swell and expand less, giving a firmer pedal. They’re available in custom lengths too.

For tubing, use only copper-lined steel hydraulic brake tubing conforming to SAE J524 specs.  Use of anything else invites failure. Trust me!

Inadequate tubing, especially plastic tubing, is subject to work-hardening, fatigue-cracking, heat damage, excessive corrosion (especially internally, where you can’t see it) and mechanical damage.

DO NOT ever use compression fittings or single flares in rigid brake tubing – use only proper fittings and double-flares (be they SAE or ISO – matched to your fittings, of course). AN or JIC fittings of appropriate quality and rating and from a reputable source are suitable for flex hoses and flex hose to rigid tube connections.

Most tube today is 3/16” or ¼”. 3/16” is stiffer, lighter, and easier to bend.  It and its associated fittings are also the most common.  ¼” has less internal friction (less resistant to fluid flow) and is easier to handle without damaging.   Note that ¼” DOES NOT “provide more volume” to actuate the callipers more quickly as I have read more times than I care to remember.  The MC piston’s bore and stroke determines the fluid volume displaced and therefore the pedal stroke required to apply the brakes. The tubing is sealed and full – its diameter has nothing to do with it (within reason) and you certainly won’t notice the difference between ¼” and 3/16” – except maybe the placebo effect coz your buddy said so! I personally like to use ¼” simply because it’s easier to handle – you can get away with a less-than-perfect bend that you wouldn’t be able to with 3/16” tube.

Secure tubing to frame with proper size tube clamps to avoid possible fractures and to prevent fittings from loosening and leaking.

Use grommets or some other means to protect brake lines that pass through the frame or body panels.

Make sure fittings and connections are in good condition and are properly tightened. Check regularly.

3/16” hardline fittings are 3/8-24 thread, ¼” hardline fittings are 7/16-24 thread.

Brake Callipers

Fixed or Floating

Callipers are either of “fixed” or “floating” design.  Fixed callipers are mounted rigidly to the axle and employ one or more pistons on either side of the calliper to press the pads against the rotor.  A floating calliper, common on production vehicles, has a piston or pistons only on the inboard side of the calliper. The floating calliper is mounted on pins or slides so that when the piston extends and presses the inboard pad against the rotor, the whole body of the calliper slides on its pins or guides in the opposite direction, bringing the outboard pad into contact with the rotor.  Each design has its advantages and drawbacks as follows:

Floating callipers are smaller, lighter, and easier to package. They are also cheap, readily available, and easy to mount.

Fixed calliper is bigger and heavier than floating calliper. It will also overheat less readily and be more rigid than a floating calliper.

Floating callipers cool better as the fluid and piston are only on the inboard side of the rotor.

Floating callipers have fewer moving parts and seals to leak or wear out.

Fixed callipers tend to apply the pads more evenly, preventing uneven brake pad wear

Floating calliper design more easily incorporates a cable-operated parking brake.

Operation of a Floating Calliper

When brakes are applied, piston on outboard side extends in direction of red arrow until outboard pad contacts rotor. At that point, calliper slides on pins in direction of blue arrows until inboard side of calliper presses inboard pad against rotor.

Single or Multi-Piston

Fixed callipers are, by definition, multi-piston, but floating callipers can also have more than one piston. In addition, fixed callipers may have more than two pistons.

Recall that, because pressure is equal on all surfaces inside the brake hydraulic system, the more calliper piston area we have, the more force is exerted for a given input. In other words – we want the most piston surface area possible.  One method of achieving this is to use multiple callipers on each rotor – but this approach presents packaging problems inside the wheel.  The other alternative is to use either a very large single piston, or multiple pistons.  The problem is that using a very large single piston necessitates a huge calliper body – again presenting problems with packaging in the wheel. Thus, multi-piston callipers can be used to achieve greater TOTAL piston area than you could fit with a single piston.  That said – a multi-piston calliper is only “more powerful” if the total area of its pistons is greater than the alternative. I.e. – if your buddy is bragging about his bling “multi-piston” callipers, but each has an area of only two square inches, and you have an old truck calliper with a single huge piston of four square inches area, you can comfortable laugh in his face! With floating callipers, effective piston area is the area of the actual piston(s), multiplied by two, because of the sliding action bringing the other side of the calliper into contact.

Another advantage of the multi-piston calliper is that it can more evenly press the pads against the rotor, achieving better, more consistent breaking and more even pad wear.

Sealing and Retraction

Calliper pistons are normally sealed with an O-ring that has a square cross-section. This O-ring stretches when the brakes are applied and the piston extends towards the rotor. When the pedal is released, the O-ring relaxes and retracts the piston. Because the rotor and brake pad surfaces are flat and aligned (or at least should be!) it takes very little movement to obtain pad-to-rotor clearance.

Mounting

Apart from issues of clearance, protection from debris and damage, and ease of bleeding, there is no reason you can’t mount a brake calliper at any position around the circumference of the rotor.  The 3 ‘o’ clock and 9 ‘o’ clock positions are the most common (i.e. in front of, or behind the rotor), as this affords good protection and allows the calliper to be mounted with the bleed-screw up (highly recommended), for ease of bleeding.  Mounting at 6 ‘o’clock would almost certainly make the calliper far too vulnerable, rob ground clearance, and imparts no particular advantage. However, there’s no reason you can’t mount the calliper at 12 ‘o’ clock ,provided you are prepared to remove the calliper (to orient the bleeder screw up) to bleed the brakes. If you do, be sure to insert a block of wood or other spacer in the calliper while bleeding.

Rear calliper mounted high at 11'o' clock for clearance but with bleeder screw still at highest point.

A great many calliper mounting brackets that I see, be they commercial or home-brew, (including my own, I must admit) are simply too thin and without adequate structural shape-strength to do the job.  It is essential that a calliper mounting bracket not flex when the brakes are applied - otherwise we will be robbed of our all-important pedal travel. We will also experience calliper twisting leading to uneven pad wear and a spongy pedal. Worse still, we will be on our way to fatigue failure in the calliper bracket!  ¼” steel is simply inadequate – especially when not bent and reinforced into a structural shape that imparts strength.  When I apply my front brakes hard, you can actually see the almost-flat ¼” plate steel brackets flexing and twisting! Check yours. And won’t somebody please make some decent, heavy-duty calliper brackets – from 3/8” as a minimum but preferably from ½”!!

Rotors

Rotors make me laugh. Actually, the things people do to, and say about, rotors makes me laugh.

Rotor size is specified by diameter and thickness (the thickness between the two pad-contact surfaces on either side).

Rotors can be solid, vented , cross-drilled, grooved, or some combination thereof.  Too many people to count, including many experts, do not understand the true purpose (and consequences) of each of these design factors. Allow me to clarify.

Solid – small, solid rotors are adequate for small, light, or slow vehicles.

Vented – many medium-to-large rotors are made with radial cooling passages in them to act as an air pump to circulate air from the rotor center to the outside of the rotor. Depending on design, vented rotors may be directional. If the vent passages are curved, they will be more efficient at cooling, but will work in only one direction. If you use curved-vent rotors – make sure you install hem on the correct side of the vehicle!

Cross-drilled and slotted rotors – this is the bit that makes me laugh. Way too many people think the drilled holes or machined slots are for cooling. They are not. In very high-performance braking (i.e. race car) hot gas and friction material dust can build up between the pads and rotors as the brakes are used hard, heat and cool rapidly, and the pads wear fast.  Rotors can be cross-drilled or slotted to help this dust and gas escape – otherwise it can build up under the pads and reduce friction between pad and rotor, reducing braking.  These techniques are really only effective in racing where pads are large and wear quickly and temperatures are very high.
Unfortunately, the “cross-drilled” look at some point became synonymous with “high performance” and everyone wanted it.  In reality, unless you’re racing, drilling the rotors really only reduces the performance of your brakes by:

Reducing the rotor mass, thereby reducing it’s thermal absorption capacity (remember TR = Kc / 77.8 * Wb ??)

Increasing the chance of fatigue and thermal-induced stress cracks in the rotor

Reducing the contact area between pad and rotor, thereby reducing braking.

In all honesty, cross-drilled rotors on a rock-crawler are pretty funny – unless it’s done purely for weight saving and with the knowledge that it does nothing to enhance braking.

Ultimately, slotted rotors work well, and judiciously drilled rotors do too – but if you see a Swiss-cheese rotor it most likely means the designer/builder doesn’t actually understand how brakes work.

Simple solid rotor.

Vented rotor.

Vented rotor with curved, directional vanes.

Slotted rotor.

Slotted and cross-drilled rotor.

This much cross-drilling is probably excessive, unless EXTREME weight savings are required. Even so, and especially with the pattern shown, thermal stress cracking is almost assured.

Pads

It all comes to a head at the brake pads. Pads need to be clean, even, and have a high coefficient of friction against the rotor for maximum braking performance. Disc brake pads are available in a dizzying array of compounds - all claiming certain benefits. One thing that is consistent is that the pad's compound will have a different coefficient of friction depending on whether it is cold or hot. Race car folks are familiar with this as it is often heard that the brakes must be "warmed up" before they work well. As a general rule of thumb, the following compounds exhibit the following coefficients of friction:

Organic – cold 0.44, hot 0.48

semi-metallic – cold 0.38, hot 0.40

Metallic – cold 0.25, hot 0.35

Synthetic – cold 0.38, hot 0.45

The higher the coefficient of friction, the "softer" the pad is said to be. Keep in mind that there are other factors to consider when selecting pads, such as noise and wear. The softer the pad is, the more rapidly it will wear.

All DOT legal brake pads (OEM and road-car aftermarket) are mandated by law to be marked with a two-letter code, called the "DOT Edge Code" that represents the coefficient of friction when a 1" square piece of friction material is subjected to varying conditions of load, temperature, pressure and rubbing speed on a test apparatus known as the Chase machine.

The first letter of the code, sometimes known as the "cold" code, represents the normal friction coefficient. This is defined as the average of four test data points measured at 200, 250, 300 and 400 degrees Fahrenheit.

The second letter of the code, sometimes known as the "hot" code, represents the hot friction coefficient based on a fade and recovery test. Recovery is basically the period where the brakes are gradually cooling off. The hot friction coefficient is defined as the average of multiple data points: 450, 500, 550, 600 and 650°F on the first recovery cycle of the pad; and 500, 400, and 300°F on the second recovery cycle.

The range of friction coefficients assigned to each code letter are as follows: C = less than 0.15. D= 0.15 to 0.25. E= 0.25 to 0.35. F= 0.35 to 0.45. G= 0.45 to 0.55, and H= over 0.55.

Each letter grade spans a range of coefficients, but the combination of the two letters and the order in which they come can be a useful indicator of pad performance as it demonstrates the change in coefficient of friction for that pad from cold to hot (and vice versa). For example, an FE pad will grab better when cold (i.e. tends to fade when hot) whereas an EF pad would not grab well when cold (i.e. would need to be warmed up for max performance). Note that the coefficient of friction of steel on steel is 0.25, so EE pads grab only marginally better than no pads at all! FF pads are usually considered the minimum for a high-performance brake pad.

Some example Edge Code's are:

Official D.O.T. Edge Code Normal Coefficient of Friction Hot Coefficient of Friction Notes
EE 0.25 to 0.35 0.25 to 0.35 0-25% fade at 600°F possible
FE 0.35 to 0.45 0.25 to 0.35 2% to 44% fade at 600°F possible
EF 0.25 to 0.35 0.35 to 0.45 0-22% fade at 600°F possible
GG 0.45 to 0.55 0.45 to 0.55 Very Rare
HH 0.55 to 0.65 0.55 to 0.65 Carbon/Carbon only. O.K. up to 3000°F where it glows

Any good aftermarket racing pad should be sold with a precise coefficient of friction identified for both cold and warm performance, or even a curve showing coefficient of friction vs. temperature.

Whichever pad you use, the type of lining, edge code, or exact spec can be useful in determining the coefficient of friction to use when making brake system calculations.

Bedding-in Brake Pads

When new brake pads are installed, they should be "bedded-in". Bedding-in brake pads is a process of breaking them in before severe use, similar to the way an engine or set of gears must be broken in.

To perform the “break-in”, follow the steps listed below:

Step 1: Make 10 stops from 30 mph (50 kph) down to about 10 mph (15 kph) using moderate braking pressure and allowing approximately 30 seconds between stops for cooling. Do not drag your pads during these stops. After the 10th stop, allow 15 minutes for your braking system to cool down.

Step 2: Make 5 consecutive stops from 50 mph (80 kph) down to 10 mph (15 kph). After the 5th stop, allow your braking system to cool for approximately 30 minutes.

This completes the “break-in” of the pads to the rotor surface. Full seating of new brake pads normally occurs within 1000 miles.

The Braking Requirements of Extreme Off-road Rigs

As with so many things that determine vehicle performance – from tires to suspension to gearing – we extreme off-roaders are on our own.  There has been little serious R&D and engineering research into our needs and their solutions.  The sport just hasn’t yet grown to that level.  This lack of published research and engineering, when combined with the specific peculiarities of our needs (needs that simply don’t exist elsewhere), leaves us heavily reliant on one-another for anecdotal advice and seat-of-the-pants experience.

This means that designing a satisfactory system, or solving a particular problem depends heavily on our ability to communicate our needs and wants, as well as our perception of the problem.

That’s why I’m now going to devote a little time to addressing what I see as the unique requirements of an off-road braking system, followed by some discussion on what constitutes “good” brakes and what the limits to brake performance are.

Peculiarities of off-road

Recall the two functions of the brakes – brake torque (clamping action) and thermal capacity. The rigors of off-road impart unique requirements in both areas:

Brake Torque

Cars spend most of their time on relatively flat ground – their brake torque requirements are concerned mostly with slowing the car from speed. In contrast, we can often spend hours with the front-end 60 degrees nose-up or nose-down – a situation in which overcoming the force of  gravity as it tries to move the rig downhill is far more pronounced than in any road car. Not only that, but it is in precisely these situations (as well as others, like navigating large boulders) where we require precise control – an inch or two makes or breaks the line (or takes a cone).

No normal car combines a low stall speed torque converter with super-low gearing quite like an extreme 4x4 can. Not even drag cars. You often hear those with auto transmissions, low-stall converters, and low gears complaining of not being able to stop the rig, or of not being able to keep it stopped (“driving through the brakes at idle”).  A rig like this wants to “go” all the time and we rely on our brakes to keep it in check – again, often in situations where inches mean the difference between a roll-over or not.

Many rigs make use of the brakes to perform “digs” or “burns” wherein one axle is braked while the other is driven to create a pivoting effect for sharper turning. To use this technique to max effect, great brake torque must be generated in the non-driven axle. If you’re sending 300hp to the rear wheels in a front burn, you’d better be able to brake those front wheels with some serious brake torque.

OK, you say, so we need a lot of brake torque – but so does a 200mph race car.  True indeed, but there are a couple of factors that make our requirements unique:

            First, in a race car, you’re strapped in tight, back against the seat, and are usually on the gas or on the brakes hard – and you transition from one to the other pretty aggressively. In an off-road rig, we find ourselves needing tip-toe control of the brakes as we work a hard line, often two-foot driving, while we move about in the seat to see the terrain. This makes it much less comfortable to have to press the pedal hard, compared to the car driver who’s already pressed back in the seat and stays there.  In a rock rig, you don’t want to be pressed back into the seat, leg trembling, trying to see the line – what we need is precise, light control of the brakes (while still achieving BIG brake torque), at all sorts of cambers and angles, often for long periods of time, without undue effort and resultant fatigue - especially since we can spend all day in our rigs.

Energy converter mode:

In cars, braking is most important when the car is at speed. Even in an auto equipped car at a stop light, the car’s stall speed and overall gearing are such that it takes little force to prevent movement. The result is, in a car, the energy converter function of the brakes is concerned primarily with the kinetic energy of the car in motion - the inertia of rotating wheels is negligible in comparison.  This is obvious - the faster the car, the better the brakes need to be.

What is less obvious is the demand the vastly heavier wheels and tires of a 4x4 place on the brakes. In an off-road rig, rotating, big, heavy wheels and tires have much more inertia than their car counterparts.  This means that the capability of the brakes to convert and absorb energy is less obvious, but no less important. It’s obvious in a fast car – car goes fast, car brakes hard, car brakes get hot. But in an off-road rig with large, heavy tires, even at slow speeds, the brakes get hot because they have to convert not only the kinetic energy of the slow-moving vehicle, but also kinetic energy of the heavy tires and wheels.  In other words, just because you go slow, doesn’t mean you don’t need good brakes.

All of which means – proper brake performance is extremely important to us – for safety as well as a pleasant, non-fatiguing driving experience – even though we don’t normally encounter very high speeds for very long.

And if you “race” your rig (which is becoming more and more popular), well brake performance just gets more and more important.

Bottom line – you probably need more brake than you think, and how they feel is going to have a large effect on how well you’ll be able to drive in extreme terrain, and how pleasant and comfortable it will be.

Brake Performance and Limits

There should be only one limit to how well your brakes work – traction. The traction between tire and road should always be the limiting factor to how quickly you can stop. Exceeding the traction limit causes the tires to lock-up and skid.  If you can do this under all conditions, with reasonable and comfortable pedal effort, then your brakes are adequate. If not, some other factor is limiting their performance, and maintenance or modification will be required. The other, undesirable, limiting factors are:

Force Limit

At force limit, you push as hard as possible on the brakes but can’t stop any quicker. If you could push harder, the vehicle would stop quicker.  Force limit can be altered by reducing master cylinder size, using different brake pads, adding or upgrading power assist, increasing pedal ratio, increasing calliper piston area, or increasing effective rotor diameter.

Deflection Limit

At the deflection limit, the pedal hits the floor or the MC piston hits its internal stop before max brake force is generated.  I.e. – the combination of designed clearance and unwanted deflection in the system exceeds the available travel. Clearance is determined by the volume of fluid required to be displaced to bring the pads into contact with the rotor, and is chiefly determined by the size of the calliper piston(s). Unwanted deflection can come from pedal and pedal-mount flex, MC mount flex, calliper bracket flex, calliper flex, hose expansion, trapped air, unevenly worn pads or rotors, and other worn components such as wheel bearings.  Assuming all air is bled from the system and all components are in good working order, deflection limit can be altered by increasing MC piston diameter, decreasing calliper piston diameter, upgrading flex hoses, reducing the length of flex hose used, or using stiffer callipers, brackets, and pedals.

Wear Limit

The brakes effectiveness can be limited by worn components. If pads or rotors are worn excessively, or if any seal, tube, hose, bracket, or fitting is damaged, worn, or leaking, a reduction in performance, or worse, brake failure, can result. The likelihood of reaching the wear limit can be reduced by using different (higher quality) pads and/or rotors, using larger callipers and rotors, or increasing brake cooling. Good inspection and maintenance practices can prevent reaching the wear limit.

Temperature Limit

When brakes overheat, you reach one of the other limits (force, deflection, or wear) much more quickly.  That is, hot brakes can cause lack of braking force (commonly called brake fade), increased deflection (excessive pedal travel), or rapid component wear – ranging from pad/rotor wear to boiling fluid and cooking seals.  The keys to avoiding a temperature limit are:

Using sufficiently large/heavy brakes.

Sufficient brake cooling.

Selection of components designed for the temperatures encountered – including pads, rotors, callipers, and fluid.

Brake Fade and other complaints - Design Troubleshooting

The previous section covered the technical aspects of brake limits – but even I wouldn’t expect you to chat with a supplier or fellow driver and say “Yea, the brakes aren’t great - I think I have a deflection limit with occasional intermittent force limit.”  Well, actually, I might say that – but then Charley would mock me for hours – much to everyone else’s amusement.

To avoid this situation, let’s examine the most common brake performance complaints in every-day language.  (I was going to say “every-day parlance” but that would have been too ironic, I think!)

This section is focused on problems that occur after system modifications or design.  That is, it helps you diagnose problems in your brake system design.  If your brakes worked satisfactorily at one point, but no longer do, see the following section titled “Maintenance Troubleshooting”.  In the following tables, I have included a column entitled “compromises” because, as we know, changing one aspect of a system often affects the others.  For the sake of brevity I have included only the compromises affecting the operation of the brakes – it may be assumed that added complexity, cost, and decreased availability of parts are always possible outcomes. For example, if the solution to a particular problem is to install a stiffer calliper this will likely be more expensive, complicated and time-consuming - if such a part is even available – however there are no drawbacks or compromises in the operation of the brake system itself to using stiffer callipers – in this case, the “compromises” column will be blank.

Brake Fade

            “Brake fade” generally refers to any loss of braking caused by overheating. In fact, there are three very distinct forms of “brake fade”, and it is useful to distinguish between them, as their symptoms and solutions are entirely different.

Pad Fade.

Pad Fade is caused by the temperature of the brakes exceeding the maximum temperature limit of the brake pad friction material.  When the maximum temperature limit is reached (and even before, as it is approached), brake pads can expel gases when heated, gasses that act as a lubricant between pad and rotor. When pad fade occurs, the pedal will feel “normal” (high and firm) but there will be very little stopping power. Pumping the brakes will not help. Solutions to pad fade are:

  1. To use a more temperature resistant brake pad (harder compound)
  2. To increase the brake’s thermal capacity by increasing the size/weight of the rotor
  3. To improve cooling by using a different rotor design (vented vs. solid, or direction vs. straight vanes)
  4.  To improve brake cooling by improving cooling airflow to the brakes. In extreme circumstances, if the vehicle has air ducts for brake cooling, a fine mist of water can be sprayed into the air to cool it before it hits the rotor, improving the air’s cooling ability.
  5. To use a slotted and/or cross-drilled rotor to aid in expelling hot gasses and pad debris. Note that these designs DO NOT aid in cooling but simply allow the offending gas or particles to be removed more efficiently.

Fluid Boil

When the temperature of the calliper exceeds the boiling point of the brake fluid, tiny bubbles are formed in the brake fluid. As a result, the pedal goes soft and perhaps even to the floor as the fluid is no longer incompressible. Once this has happened, the fluid must be replaced. Over time brake fluid can absorb water vapour, and the more water vapour in the fluid, the greater its susceptibility to fluid boil. Solutions to fluid boil include: flush and fill with new brake fluid, use a brake fluid with a higher boiling point, improve cooling of the calliper, or use a calliper with an insulated piston.

Green Fade

Green fade occurs only with new brake pads if they are not “bedded-in” properly after having been installed. Bedding-in brake pads is a process of breaking them in before severe use, similar to the way an engine or set of gears must be broken in.  Green fade is caused by gas or liquid boiling off the organic pad lining on initial heating. The gas or liquid not only acts as a lubricant between pad and rotor, but can also “glaze” the surface of the pads by cooling and re-solidifying into a hard slick surface with a very low coefficient of friction. The solution to green fade is to bed in brake pads. To do so, follow the steps outlined in "Bedding-in".

Hard Pedal

“Hard Pedal” is the term used to describe brakes that require excessive pedal effort – i.e. the driver must push too hard on the pedal for the brakes to work. This condition “feels” to the driver like the brake pedal is very “hard”.

Complaint: Pedal feels hard

Problem Cause Solution Compromises
Insufficient clamping force
(Force Limit)
Insufficient pressure Increase pedal ratio Need room to mount longer pedal
Pedal travel at footpad increases
Decrease MC piston area Pedal travel increases because MC displaces less fluid
Add or upgrade power assist Packaging
Insufficient calliper piston area Install callipers with larger TOTAL piston area Pedal travel increases because calliper piston movement requires more fluid volume be displaced
Insufficient brake torque
(Force Limit)
Small effective rotor radius Install larger-diameter rotor Packaging
Low coefficient of friction Use “Softer” Brake Pads Faster wear

Low Pedal

“Low Pedal” is the term used to refer to a brake pedal that requires an excessively long stroke to fully apply the brakes.  What we are experiencing with low pedal is a deflection limit. In some cases, the brakes work only after being “pumped” a few times.  What’s happening here is that the driver is able to displace more fluid more quickly than the callipers retract, and is therefore able to provide the volume required by pumping the brakes. This is usually a symptom of incorrect valving, such as lack of required residual pressure valve.

Complaint: Pedal travels too far / only works when pumped

Problem Cause Solution Compromises
Insufficient hydraulic fluid displacement
(Deflection Limit)
MC piston area too small, displacing too little fluid per unit of stroke Increase MC Piston area MC piston generates less pressure, therefore less clamping force
Total calliper piston area too large Install callipers with less TOTAL piston area Less hydraulic force multiplication, therefore less clamping force
Pedal ratio too high, requiring too long of a stroke to fully actuate MC piston Decrease pedal ratio Less mechanical advantage for driver, resulting in harder pedal or less pressure
Fluid drains back from Calliper to MC
(Deflection Limit)
MC installed below Callipers Install 2PSI residual Pressure valve
Drum brake shoes retracted too far
(Deflection Limit)
Return springs retract shoes from drums Install 10PSI residual Pressure valve
Excessive unwanted deflection
(Deflection Limit)
Excessive flex in mountings Install or fabricate stiffer mounts / brackets - Packaging
- Weight
Excessive play in linkages Reduce linkage play Ensure brakes still release fully
Calliper Flex Install stiffer calliper
Air in fluid Bleed thoroughly
Flex hose swelling under pressure Install flex hose more resistant to swelling
Excessive use of flex hose Reduce length of flex hose used to min required for steering & suspension movement
Brake Fade
(Temp Limit)
Fluid Boil Use higher temp fluid
Improve calliper cooling
Wear Limit Worn components Repair or replace Brake pads, rotors, & wheel bearings

Spongy Pedal

Often present with, but not to be confused with, low pedal; a spongy pedal starts high and doesn’t travel too far – but it doesn’t feel firm and solid. Instead, the brakes feel soft, squishy, and spongy when applied.

Complaint: Pedal feels spongy

Problem Cause Solution Compromises
Excessive unwanted deflection
(Deflection Limit)
Excessive flex in mountings Install or fabricate stiffer mounts / brackets Packaging
Weight
Excessive play in linkages Reduce linkage play Ensure brakes still release fully
Calliper Flex Install stiffer calliper
Air in fluid Bleed thoroughly
Flex hose swelling under pressure Install flex hose more resistant to swelling
Excessive use of flex hose Reduce length of flex hose used to min required for steering & suspension movement
Brake Fade
(Temp Limit)
Fluid Boil Use higher temp fluid
Improve calliper cooling
Too much leverage from excessive pedal ratio makes brakes “feel” spongy to driver Pedal ratio too high Decrease pedal ratio Less mechanical advantage for driver, resulting in harder pedal or less pressure
Unevenly or taper-worn pads
(Wear Limit)
Uneven clamping Install multi-piston callipers

Overly Sensitive

Brakes that develop enormous clamping force (usually by generating high pressure) with very little pedal effort will feel overly sensitive to the driver. They are hard to modulate, particularly for med- to high-speed work, and are generally unpleasant to drive. Exactly the point at which this occurs will be a matter of driver preference combined with the vehicle’s use. Personally, I like brakes on the more sensitive side as it allows tip-toe control in serious vertical and off-camber situations – which can be very useful, particularly when the drive is also occupied with managing selectable lockers, three transfer case levers, a clutch, and cutting brakes.

Complaint: Pedal feels overly sensitive / brakes lock-up too easily

Problem Cause Solution Compromises
Excessive clamping force Excessive pressure Decrease Pedal ratio Pedal travel at footpad decreases
Increase MC Piston area Pedal travel decreases because MC displaces more fluid
Excessive calliper piston area Install callipers with smaller TOTAL piston area Pedal travel decreases because calliper piston movement requires less fluid volume be displaced
Excessive brake torque High coefficient of friction Use “Harder” Brake Pads

Brake System Design

The following are some general guidelines for designing a brake system from scratch. Although they are presented in a particular order, some juggling may be required. That is, you may come to a certain point (say, pedal-ratio determination) find out that you are limited by some other factor (room available for pedal) and have to juggle both prior and remaining decisions (calliper piston size, master-cylinder size, power booster selection) to work around the limitation.

Following the discussion I have included an Excel spreadsheet (.xls) that will aid in the calculations and can be used to more easily see the affects of playing with the different variables.

Step 1:

Decide on disc brakes or drums.  The answer is discs.  Go on to step 2.

Step 2:

Choose and check rotor.

While the rotor you use is often determined by the axle you have chosen, if you have a choice:

Choose the largest diameter rotor that will fit in the wheel (to make room for the calliper, this is usually about 3 in. smaller than the wheel diameter – i.e. 12” for a 15” wheel)

If possible, always choose a vented rotor

If you plan to use the brakes hard, a lot, (as in racing) consider directional-vented rotors as well as slotted and/or cross-drilled rotors. Don’t overdo the cross-drilling for the sake of appearances!

Step 3:

Check thermal capacity of chosen rotor

Using the equations in this article, check that each rotor is at least massive enough to be able to absorb the kinetic energy from a single stop from maximum speed at maximum weight without exceeding 1000°F

If you plan to use the brakes hard, a lot, (as in racing) re-do the above calculation assuming the rotor’s initial temperature is 500°F rather than ambient temperature.

Step 4:

Choose calliper

Normally, the choice of rotor will dictate the calliper used – either from the same make/model of vehicle or as a matched set from a high-performance company. However, if choice is available:

Select the stiffest calliper available, with the highest maximum pressure rating.

Select a calliper with the largest total piston area possible.

If wheel & suspension clearance and mounting brackets allow – consider using a fixed calliper – most high-performance callipers are of fixed design.

Consider use of multi-piston callipers – depending on availability and total piston area (you may find that one large piston affords more are than two small, depending on design)

Step 5:

Determine brake torque required using equations given in this article

TBr = Friction Force on Tire x Rolling Radius of Tire

Step 6:

Calculate required hydraulic system pressure:

Once the rotor and calliper are chosen, you have all the information required to calculate the hydraulic pressure required to operate the brakes at maximum capacity – that is, the pressure required to achieve maximum brake torque, as calculated above in step 5.

The equation is:

PM = TBr / (µL x AT  x RE )

Where

PM = Maximum hydraulic pressure (psi)

TBr = Brake Torque Required (ft-lbs)
µL = Coefficient of friction between brake pads and rotors (use 0.3, manufacturer’s specs, or estimate derived from the pad's DOT edge code)

AT = Total effective area of calliper’s pistons (sq. in.)

RE = Effective rotor radius (in.) – measured from the center of the rotor to the canter of the brake pad.

The answer will probably vary from several hundred to perhaps as much as fifteen hundred PSI. At this point, check that the components you are using, especially the callipers, are rated for this pressure.  If you cannot find a calliper rated for this pressure, you have three choices:

Use a calliper with more total effective piston area (larger and/or more pistons)

Use a larger diameter rotor (to increase rotor effective diameter) – hey – didn’t I already tell you to use the largest diameter rotor possible!

Use more than one calliper per wheel.  Two identical callipers on the same rotor will halve the pressure, but double the displacement, required to achieve max brake torque.

Step 7:

Decide on desired pedal effort

Pedal effort desired to stop the vehicle at maximum deceleration is a personal choice.  In a race-car it may be as much as 100 lbs – which feels like a pretty hard push.  In road cars it is normally less.  If you are not sure, 75 lbs is a good starting point.

Step 8:

Decide on power or manual brakes.

Unless space or weight is at an extreme premium, I would always recommend power brakes – especially in a big or heavy rig, or one with large tires.  Without power brakes, you are faced with a direct trade-off of pressure (brake power) vs. displacement (pedal travel). The beauty of power brakes is that they allow you to use a pedal and MC combination that is large enough to have a nice, short travel but still develop the required pressure without excessive pedal effort because of the power assist.  Except for a little extra space required and minor expense, it adds to your brake system performance without any drawback or compromise.

Step 9:

Determine desired pedal ratio, master cylinder size (piston area), and power assist to achieve max braking with desired pedal effort.

The three factors of pedal ratio, master cylinder size, and any power assist must be calculated and juggled together as they all affect one-another.  Where one factor is fixed or beyond your control (e.g. using a stock pedal assembly), adjustments or compromise in the other factors will be necessary.

Pedal ratio:

Pedal ratios range from 3:1 to 7:1. When selecting a pedal ratio, consider the mounting space required, not only for the length of pedal, but also for the stroke required at the footpad (will the pedal hit the floor before the full master cylinder stroke is used?).  Remember too, that the greater the pedal ratio, the longer the pedal, and the more susceptible it will be to flex or twist, introducing unwanted deflection. Even without flexing, a longer pedal can “feel” spongy to the driver. Also, the longer the pedal, the more pedal travel the driver will feel as the foot pad swings through a larger arc. If in doubt, start with 4:1 for power brakes and 6:1 for manual brakes.

Calculate MC pushrod force

Multiply your desired pedal effort by the pedal ratio to obtain the manual force on the MC pushrod. If pedal ratio is 5:1 and pedal effort is 75 lbs, the force on the pushrod is 5 x 75 = 375 lbs.

Select required MC size

With the pushrod force known, we can now calculate the MC piston size required to achieve the desired hydraulic pressure previously calculated. In order to do so, divide the pushrod force by the pressure to get the area of the MC piston, and then convert that area to a diameter using the formula for the area of a circle (A = pi(d/2)^2) or the accompanying chart. If the exact area you need is not available, you will have to use the next closest available size, and recalculate the actual pressure achieved. Remember that, as the MC area (diameter) gets smaller, pressure (and force) go up, but so does travel required.

Table of Master Cylinder Sizes and their Piston Areas

Master Cylinder Size (bore) Piston Diameter (d) (in.) Piston Area (sq. in.) (3.14(d/2)^2)
5/8 in. 0.6250 0.3068
11/16 in. 0.6875 0.3712
19 mm 0.7480 0.4394
¾ in. 0.7500 0.4418
20 mm 0.7874 0.4869
13/16 in. 0.8125 0.5185
21 mm 0.8268 0.5369
22 mm 0.8661 0.5892
22.2 mm 0.8740 0.5999
7/8 in. 0.8750 0.6013
23 mm 0.9055 0.6440
29/32 in. 0.9063 0.6451
15/16 in. 0.9375 0.6903
24 mm 0.9449 0.7012
25.4 mm 1.0000 0.7854
1 in 1.0000 0.7854
1-1/32 in. 1.0313 0.8353
26.6 mm 1.0472 0.8613
1-1/16 in. 1.0625 0.8866
1-1/8 in. 1.1250 0.9940
28.6 mm 1.1260 0.9958
1-1/4 in. 1.2500 1.2272
31.8 mm 1.2520 1.2311
1-5/16 in. 1.3125 1.3530
1-11/32 in. 1.3438 1.4183
1-1/2 in. 1.5000 1.7671
1-3/4 in. 1.7500 2.4053

e.g. If we require 1000psi hydraulic pressure, and have decided on a pedal effort of  75lbs and a pedal ratio of 5:1:

A = F / P

Where

A = Area of master cylinder piston required
F = Force on MC pushrod (lbs)
And
P = hydraulic pressure required (psi)

So

MC area =  375lbs / 1000psi = 0.375 Square Inches.

Referring to the table, we find that aren’t likely any master cylinders available with this exact area. The closest is an 11/16” diameter MC piston, which gives an area of 0.3712 sq. in. If you find that  the MC size you want is not available, or isn’t available in a configuration you desire, you will have to use the closest size available and recalculate.

In this example, let’s assume we can’t find an 11/16” MC we want to use, so we settle on ¾” – which ha an area of 0.4418 Sq. in..  Check the hydraulic pressure generated with this MC using the equation:

P = F / A

P = 375 lbs / 0.4418 sq. in.
   = 848 psi.

Immediately we can see that using a ¾” MC will not allow us to generate sufficient hydraulic pressure to maximally apply the brakes.  At this point, we have a decision to make – We can:

Use a pedal with a higher pedal ratio

Accept an undesirably high pedal effort

Reduce the pressure required by going all the way back to calliper / rotor choice and either

Increasing the diameter of the rotor, and/or

Increasing the size/ number of calliper pistons.

Option (1) may be a viable alternative, but what if we have limited space or are already set on a particular pedal assembly and don’t want to fabricate or buy a custom pedal? Option (2) is really out of the question, as it defeats the purpose of the whole exercise. Finally, option (3) is not only unlikely to yield the magnitude of change required, but it’s very likely that we’re already using the maximum size rotor and calliper.

So what are we to do?  The solution here is power brakes. By adding power brakes, we can dramatically increase the MC pushrod force without having to alter any of the other variables. Not only will this let us choose a MC in a more commonly available size, but will also allow us to use a larger MC so as to keep pedal travel down.

Calculating the exact factor by which a power brake booster will multiply pushrod force is difficult to do as modern vacuum and hydraulic boosters are both fairly complicated in design and often not sold with an exact boost specification.  Boost factors will depend on the size and design of the booster and will range from about 2 to 5 or more. This makes exact calculations with power brakes more complicated, but experience has shown that, with power brakes, one should normally use a pedal ratio of about 4:1 and a master cylinder with at least a 1” diameter.

Step 10:

Check displacement of fluid with chosen components, verify that pedal travel will be acceptable, and juggle / recalculate as required.

The final thing to consider, now that we have chosen a master cylinder, is the effect the MC bore size will have on pedal travel.  Unfortunately, precise calculations are complicated, as it is difficult to know the amount of travel consumed by all the deflections (both design and unwanted) in the system.

 We can calculate the displacement of the MC by multiplying the area of the piston by its stroke to arrive at a value in cubic inches. (Good aftermarket master cylinders should always specify the stroke, but with stock replacement or OEM parts it may not be as easy to come by. One foolproof method is to measure the stroke with the master cylinder out of the vehicle – values from 1 to 1-3/4 inches are common.)

In theory, we could then compare this to the volume required by the calliper pistons. The volume required by the callipers would be calculated as the area of the piston multiplied by the travel required to bring the pads into contact with the rotor.  This last variable is difficult to measure or calculate. Not only that, but the result would only be valid for maximum stroke of the pedal (and therefore master cylinder piston) and we surely want the brakes to apply well before the end of the pedal stroke.

Ultimately, we may have to rely on experience and/or testing to achieve the right balance between braking power/pedal effort, and pedal travel.

Again, power brake boosters are an enormous asset here, as we can select a large bore MC that will displace a large volume of fluid (and therefore minimize pedal travel), and still produce sufficient pressure.

As a rule of thumb, 4-wheel disc brakes require a master cylinder of at least 1” bore, and frequently 1-1/8” or more.

Step 11:

With all components selected, calculate actual maximum brake torque developed and compare with calculation of brake torque required.

To help you with the calculations, I created an Excel spreadsheet (.xls format) with the formulae already entered. Simply enter the variables in blue text and observe the results.

CLICK HERE to DOWNLOAD

Note: As you play with the variables, keep in mind that the calculations are for system performance at maximum limits. For example, if you enter 75lbs for pedal effort - this is at max braking. Also, as discussed, there are variables, such as system deflections, that cannot be measured and entered into the spreadsheet. As such, you MUST interpret the results provided by the calculations with great care.

Maintenance Troubleshooting

This section provides troubleshooting advice for a brake system that at one time functioned acceptably, but no longer does. That is, it is focused on maintenance problems. If you are experiencing problems with a newly designed/modified/installed system – refer to the previous section titled “Brake Fade and other complaints.”

Problem Cause
Low Pedal – improves with pumping Rotor runout
Loose wheel bearing
Air in hydraulic system
Low Pedal – no improvement with pumping Bad calliper seals
Badly worn pads
Rotor runout
Leak in hydraulic system
Loose wheel bearing
Excessive free-play in brake linkage
Low fluid in reservoir
Partial brake system failure
Spongy Pedal Air in hydraulic system
Hose swelling / Deteriorated flex hoses
Fluid boil
Badly worn pads
Uneven pad wear
Old or contaminated brake fluid
Faulty master cylinder
Calliper not square to rotor
Master Cylinder mounting loose
Clogged reservoir cap vent hole
Soft or swollen calliper seals
Pedal doesn’t return MC reservoir not vented
No clearance in MC pushrod
Binding in pedal pivot or pushrod
Front or Rear brakes locking prematurely Too much front or rear brake bias
Defective brake valving
Failure in opposite system
Excessive wear in opposite system
Worn tires
Tire pressure too high
Defective master cylinder
Defective calliper
One brake locking / vehicle pulls to one side Calliper piston seizing
Defective, damaged, or oil-contaminated brake pad on one side
Defective calliper
Scored or out-of-round rotor
Bad calliper O-ring
Loose calliper mount
Mismatched rotors and pads
Incorrect tire pressures
Bad front-end alignment
Mismatched tires / load
Damaged or crimped brake line/hose
Loose suspension parts
Loose calliper mounting bolts
Incorrect wheel bearing adjustment
Overly sensitive pedal Defective power booster
Hard Pedal Power booster failure
Brakes wet
Glazed pads
Contaminated pads (oil or fluid)
Fluid Boil
Pad Fade
Excessively worn pads
Calliper piston seized or sticking
Worn / defective master cylinder
Vibrating Pedal Excessive rotor runout or thickness variation
Wheel bearing damaged, worn, or out of adjustment
Cracked rotor
Bent axle
Corroded rotor vent fins
Calliper not sliding properly
No Pedal (pedal goes to floor) Air in hydraulic system
Leak in hydraulic system
Tapered pad wear
Electric current passing through brake fluid
Lack of fluid in reservoir
Brakes grab Contaminated pad linings
Brakes wet
Bad combination valve
Brakes not releasing / Brake drag Defective master cylinder
No clearance in MC pushrod
Binding in pedal pivot or pushrod
Seized calliper piston
Aged or overheated calliper seals
Swollen seals (incorrect brake fluid)
Calliper slides / pins corroded / seized
Parking brake on or maladjusted
Faulty power booster
Improper valving (residual pressure valve)
Calliper not square to rotor
Damaged or crimped brake line/hose
Clogged brake lines
Wheel bearing damaged, worn, or out of adjustment
Brakes squeal Worn pads
Brakes wet
Glazed or contaminated pads
Dirty or scored rotor
Bent calliper bracket
Worn/missing/broken anti-squeal shims
Worn/missing anti-squeal compound on back of pads
Taper wear on pads
Rapid pad wear Brakes not releasing
Bad surface finish on rotor
Pads too soft
Pad fade (inadequate cooling)
Cracked/damaged/contaminated rotor

Review - VANCO Power Brake Supply Hydroboost System

Why?

The beauty of power-assist brakes is that they allow us to design a brake system where we don't need to compromise movement for force. Without power-assist, we need to use a small master cylinder piston to develop sufficient pressure, but that same small master cylinder displaces little fluid, leaving us with unnecessarily long pedal stroke. The situation is worse when we have swapped in rear disc brakes that require more volume than drums to operate. With power assist we can use a master cylinder with a nice large diameter bore that will displace a lot of fluid and give us a nice, short pedal stroke - the power booster multiplies our input force to create sufficient pressure even with the large master cylinder piston.

The most common form of power brake booster is the vacuum booster. Vacuum boosters, although common in OEM road cars, have several limitations. First, they must be very large to produce much boost, making them hard to fit in cramped engine compartments - especially with that V8 shoe-horned in there. Second, they rely on engine vacuum to produce boost power. Trouble is, if you have a diesel engine, big cam, forced induction (supercharger), or even certain emissions controls on your motor you won't have a steady, reliable source of vacuum. The last thing we want is brake boost that is weak and unreliable - especially with a more powerful engine!

Fortunately, there is another option - hydraulically boosted brakes. A hydroboost brake booster is powered by hydraulic fluid from the power steering pump. It fits between the pedal and master cylinder just as a vacuum booster does, but offers several distinct advantages:

  • Size. The hydroboost booster is much more compact than a vacuum booster. At only 14 inches long and approximately 4.5 inches in diameter, it can fit in tight spaces. It can even be mounted upside-down!
  • Power. The hydroboost is far more powerful than a vacuum booster. Given "average" pedal ratio's and master cylinders a vacuum boosted brake system may develop 1000-1500psi. A hydroboost system is capable of generating 2400-3000 psi!
  • Reliability. Instead of relying on potentially weak and fluctuating engine vacuum, the hydroboost is powered by the vehicle's power steering pump.

How it works.

The hydroboost unit is plumbed in-line with the power steering. The power steering pump provides a constant flow of pressurized hydraulic fluid to the booster. When brakes are off fluid is bypassed out the return port and back to the power steering reservoir. When brakes are applied, hydraulic flow passing across the power (boost) piston is restricted. This restriction creates a pressure drop across the boost piston. The resulting force is transferred to the master cylinder piston.

The booster incorporates an accumulator containing nitrogen gas. When the engine is running, hydraulic flow to the booster compresses the nitrogen, storing energy (like a spring). Should the engine fail, there is sufficient energy stored in the compressed nitrogen to allow for 1-2 power assisted applications of the brakes. After that, brakes operate normally but without power boost.

Compact, powerful, reliable, and dead-easy to install - hydroboost brakes are a neck-snapping upgrade to any rig - and particularly any with large/heavy tires (remember how radius of tire figures in the equation for brake torque required?)

Follow along as I install a hydroboost braking system from VANCO Power Brake Supply

Vanco offer separate components for hydroboost brakes or complete kits, including new power steering pumps.

In my case, running full-hydro steering, I already had a powerful pump, so I ordered a kit with hydraulic booster, new master cylinder, and all the lines and fittings required.


Everything inside the box was well protected during shipping with foam packing material.

The kit came complete with everything required plus some decent printed instructions and some cool stickers.

Inside the box.

The complete contents of my kit.


Van includes all the fittings you will need, as well as generous lengths of hose so that you can custom make the lines for exact fit.

The system uses "field attachable" hydraulic fittings, which not only make installation easy and neat, but also make any future hose repair/replacement dead easy.

Also included are the necessary adapters for the booster, ps pump, and steering box to convert the entire system's plumbing to -6 AN. These fittings are common, easy to work with, and are available with swivel ends in either straight or 90° configurations. All of which makes the plumbing a snap.


Booster with new master cylinder attached. Note how compact the booster is.

In this side view you can clearly see the gold can of the nitrogen accumulator. Just above it you can see the high-pressure inlet port (fluid-in from ps pump).

In this shot of the other side of the booster, you can see the outlet ports on the master cylinder; and on the booster the port for the high-pressure supply line (to steering box/valve) and the fitting for the low-pressure return line (to ps reservoir).

For my installation I specified the mounting plate be at right-angles (90°) to the booster, and that's what I got.


One of the beauties of the Vanco kit is the custom fit of the booster. Both the mounting plate and pedal-rod, seen here, are custom-made by Vanco for your booster, to your exact specifications.

This makes installation in any vehicle, whether it previously had hydroboost, vacuum boost, or manual brakes a "bolt-in" affair.

The mounting plate can be installed by Vanco at any angle you specify to match the angle of your firewall / mounting bracket, so that the booster and master cylinder sit level when installed. It will also be made with whatever bolt-hole pattern you specify.

Also, virtually any pushrod length or configuration will be custom made to fit your pedal. Because of my "reverse mount" pedal, I spec'd a short pushrod with 1/2" hole for the pedal pin.



Various master cylinder's are available to match your braking system's needs.

My kit came with a massive 1-5/16" master cylinder piston, huge built-in reservoirs, and no valving in the master cylinder.

The large master cylinder piston diameter will displace a lot of fluid - perfect for actuating my 3/4-ton 4-wheel disc brakes quickly, and with short pedal stroke.

The hydroboost booster will supply the power necessary to actuate such a large piston without experiencing a very hard pedal.


Installation begins with the removal of the master cylinder from the booster so that the master cylinder can be thoroughly bench bled before installation.

The output rod of the booster.

Input side of the master cylinder piston.


To bench bleed the master cylinder:

Clamp the mounting flange securely in a vice, making sure the master cylinder is level (note the cardboard to protect the surface of the flange). Do not clamp any other part of the master cylinder.

Install an old fitting and a short length of brake line in each outlet port, and route the lines back into the master cylinder reservoirs. Tighten the fittings

Fill the reservoirs with new, quality brake fluid.



Mark a wooden dowel or similar tool (here I am using the handle of a hammer) with two lines - one that lines up with the end of the cylinder when the piston is fully relaxed, and another an inch from that.

When bench bleeding, you want to avoid using the entire stroke of the piston otherwise air can creep past the ends of the cup seals in the piston bore.

Generally, 3/4 of the stroke of the piston is sufficient. With a total stroke of 1-1/2" I am using 1" for bench bleeding.


Carefully depress the piston in slow, even strokes to expel all the air from the master cylinder. During the process you will observe the air bubbling out from the bleeder lines, as can be seen here.

Once all the air has been removed, re-install the master cylinder cover, remove the bleeding lines, re-install the plugs in the outlet ports, and set the master cylinder aside.


Next, prepare the booster for installation by installing the conversion fittings included in the kit.

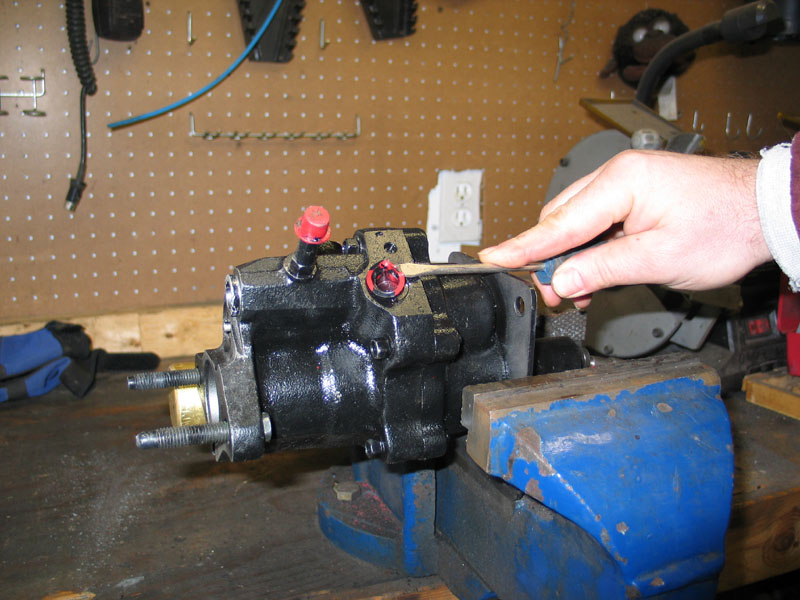

Start by carefully prying the plugs from the ports.



The booster conversion fittings use a small O-ring fitting on the end that threads into the booster. The other end is a male -6 AN.

Two different size fittings are used - one 18mm for the inlet port, and one 16mm for the outlet. Only one fitting will fit in each port.

Lubricate the O-rings with clean power steering fluid and install them on the ends of the fittings.



Thread the fittings into place in the booster, and carefully tighten until the O-ring seats. Gently tighten another 1/4 turn. Do not exceed 20 ft-lbs when tightening the fittings or damage to the O-ring will occur.

The fitting on the accumulator side of the booster is the 18mm "in" port from the ps pump.

The fitting on the other side (next to the long return-port nipple) is the 16mm "out" port that goes to the steering.



With the new master cylinder and booster ready for installation, remove the original booster / master cylinder.

I took the opportunity to clean up the mounting bracket a bit.

Don't worry - that overspray won't hurt anything.

If you measured the mounting bolt pattern carefully prior to ordering, the new booster will bolt right in place.



Loosely bolt the booster to the bracket / firewall, and mount the new master cylinder on the booster.

Do not tighten the fasteners yet.



With the booster mounted loosely, so that you have some play, install the pushrod on the pedal.

Make sure you install any required hardware, depending on your pedal.

Here the pushrod is secured with a cotter pin.



Tighten the booster mounting fasteners to 25-30 ft-lbs.

It is extremely important at this stage to check that the pushrod is straight and level from the pedal to the booster. No more than 5° of misalignment is permissible, otherwise booster wear / damage will result.



It is also very important to check that there is a little play or "jiggle" in the pedal with the booster installed. Without a little play, the hydroboost will constantly engage the brakes, leading to rapid brake wear.

This video clip shows what the proper amount of play looks like at the pushrod.


Another video clip showing proper play in the pedal.


Before tightening the nuts that secure the master cylinder to the booster, reconnect the front and rear brake lines at the master cylinder.

Having a little play with the master cylinder loose can aid in lining up the brake lines and getting the fittings started in the ports.

If the master cylinder's reservoirs are not equal in size, connect the outlet of the larger reservoir to the front brakes.


With the booster mounted securely, pedal connected, and the brake lines reconnected, tighten the master cylinder mounting nuts to 20-25 ft/lbs.



Plumbing

The final step is plumbing the hydroboost inline with the power steering circuit. All the adapters, fittings, and lines are included to convert the hydraulic circuit to -6 AN - which is a nice upgrade all by itself. The plumbing circuit, shown below is identical whether you have normal power steering or, as in my case, full-hydraulic steering. For full hydro, simply replace the steering gear box in the diagram with the hydraulic steering unit (often erroneously called the "orbital valve").

Fluid flow is as follows: RESERVOIR -> PUMP -> BOOSTER -> STEERING -> COOLER -> FILTER -> RESERVOIR.

Technically, the cooler and filter are "optional" but I HIGHLY recommend you install them. I added a small auto transmission cooler and my reservoir has a built-in filter.

It goes without saying that you need a good, strong ps pump in good condition. If in doubt, replace it.

Step one, if required, is to remove the stock outlet fitting from your ps pump and replace it with one of the supplied -6 AN adapters. In the case of GM-style Saginaw pumps like mine, there are four adapters included:

  • Two are "inverted flare" fittings (one 5/8" & one 11/16") for early (to 1977) pumps
  • Two are "O-ring" fittings (one 16mm & one 18mm) for later (1978+) pumps.

Here you can see the adapter fitting in the ps pump outlet port, and the high-pressure supply line connected.



If you are using a traditional Saginaw steering gearbox, you will also have to install one of the supplied -6 AN adapter fittings into the high-pressure "in" port of the steering box (normally the forward/engine side port).

With full-hydraulic steering, my steering unit already uses -6 AN fittings, as shown here.



With all fittings converted to -6 An, you can make and install the hoses.

Take your time measuring for and making the hoses. Clear instructions are included for cutting the hose and installing the end fittings - all that is needed is a hacksaw and a couple of wrenches.

Route the hoses as follows, being sure to avoid sharp edges, heat sources, and excessively tight bends:

  • Install one high-pressure line from the ps pump outlet to the booster inlet (reservoir side)

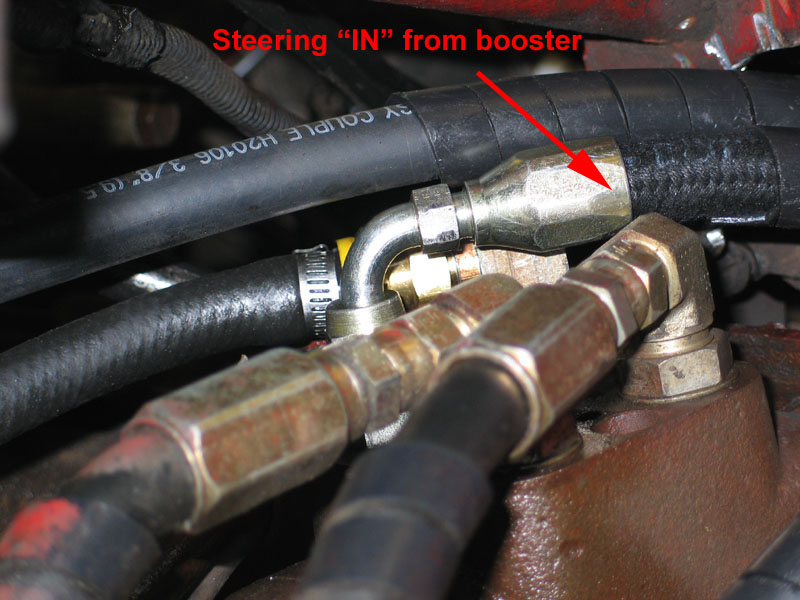

  • Install the other high-pressure line from the booster outlet to the steering box or hydraulic steering unit.


Install the supplied T fitting into the reservoir's return line, as shown here.

Using the supplied low-pressure hose and a hose clamp, connect one side of the T to the booster's return line fitting (the longer tube sticking out of the booster).

Leave the other side of the T open for now.


Run another low-pressure return line from the steering box / unit's return port to the cooler.


Make sure the line from the steering unit enters the BOTTOM of the cooler and exits the top (to avoid trapping air in the cooler.)

Route the upper cooler port back through a filter...



... and into the other side of the T.

Secure all low-pressure lines to their fittings with hose clamps.

Do not over-tighten the high-pressure -6 AN swivel fittings.


Completed plumbing at booster.


Once installation is complete, bleed the brakes first (engine off) an then proceed to bleed the hydroboost system.

Use a high-quality power steering fluid for your power steering and hydroboost. Do not use ATF as it is more easily subject to aeration, frothing, and cavitation (leading to pump noise and failure.)

The following is my procedure for bleeding the hydroboost:

Hydroboost Bleeding

  1. Fill power steering reservoir with power steering fluid to proper level and allow the fluid to remain undisturbed for two minutes.
  2. Disconnect coil wire and crank engine to operate pump and flow fluid through entire circuit. Crank in short bursts. When no more air appears to bubble out and fluid level remains constant, re-connect coil wire.
  3. Start engine and allow it to run for 10 seconds. Stop engine and check fluid level. Add fluid if necessary. Repeat until fluid level remains constant after engine has run.
  4. Raise front wheels clear of ground. Start engine and turn steering wheel from stop-to-stop twice. Stop engine and pump brake pedal four or five times to relieve accumulator pressure.
  5. Check fluid level, add if necessary.
  6. Start engine and run at approximately 1,500 RPM. Pump brake pedal several times. Turn steering wheel from stop-to-stop, lightly contacting wheel stops, several times.
  7. Stop engine and check fluid level. If fluid is foamy, let sit until clear of foam. Add fluid if necessary.
  8. Lower front wheels to ground. Start engine and run at approximately 1,500 RPM. Pump brake pedal several times while turning steering wheel from stop-to-stop, lightly contacting wheel stops.
  9. Stop engine and pump brake pedal four or five times to relieve accumulator pressure. Check fluid level. Add fluid if necessary.
  10. If fluid is extremely foamy, allow the vehicle to stand for one hour with the engine off, then repeat steps 1 through 10.
The presence of trapped air in the system will cause Noise (cavitation), fluid foaming, and the fluid level in the reservoir (pump) to rise when the engine is turned off.

Conclusion

I can STOP! For too long I suffered with manual brakes. I had once tried a hydroboost conversion with junkyard parts - not only did the booster not boost the brakes, it played havoc with my hydraulic steering. No such worries with this kit from Vanco. What has to be one of the quickest and easiest install's I've done also netted great results. Now I can stop on a dime, and, just as importantly, hold the rig in any position, for as long as I like, with very little leg effort required. This is a superb upgrade for steep climbs and big-boulder crawling. If you've not driven hydroboost brakes before, you will be amazed at the stopping power you will have. As this is essentially the same system as in my 2007 Chevy 3/4-ton tow rig (that has GVWR of 9200 lbs!!) I'm well set now for when I install that torquey new Gen IV V8 and low-stall auto I've had my eye on!

References:

  • "Brake Handbook". Fred Puhn; HPBooks, 1985
  • "Engineer to Win". Carroll Smith; Motorbooks International, 1985
  • "Nuts, Bolts, Fasteners, and Plumbing Handbook". Carroll Smith; Motorbooks International, 1990
  • 1981 Light Duty Truck Service Manual. General Motors Corporation, 1980
  • VANCO Power Brake Supply; http://www.vancopbs.com

Sources:

VANCO Power Brake Supply

9738 Atlantic Avenue
South Gate, California, 90280
(323) 563-1588 / (800) 256-6295
http://www.vancopbs.com

vancopbs@aol.com

Total:


Get a GoStats hit counter

BillaVista.com

web count
Get a GoStats hit counter
