Cooling System Components

The following are the basic components of any cooling system and so this section applies to any vehicle or any engine. Following this we'll have a look at some more specific GM Gen III/IV V8 ("LS") cooling system tech.

Heat (or heat energy) is measure in units called British Thermal Units (or BTUs). A BTU is the amount of energy required to raise 1 pound of water 1°F.

Without knowing anything about thermodynamics, it's obvious that the best coolant is one that can absorb and give off the most heat energy per degree of temperature change it experiences - in other words it should be able to absorb and carry away a lot of heat energy without getting too hot itself. This property is called "specific heat". A liquid's specific heat is the number of BTUs it takes to raise the temperature of one pound of that liquid 1° F. In other words, the higher a liquid's specific heat, the more heat energy it can absorb per degree of temperature rise. We want the coolant to absorb a lot of heat energy while suffering the lowest temperature rise possible - that way the coolant can carry away the most heat without getting too hot itself and boiling. If the coolant boils it becomes a vapour (gas) and is now useless to us.

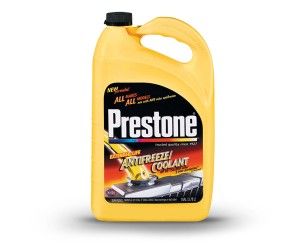

It turns out that plain old distilled water has the highest specific heat of all liquids commonly used for coolant. Water has a specific heat of 1 - meaning one pound of water can absorb 1 BTU for a temperature increase of 1° F.

A 50/50 Ethylene Glycol / water mix has a specific heat of 0.5, meaning it takes only 0.5 BTUs to raise the temperature of 1 pound Ethylene Glycol / water mix 1° F.

A 50/50 Propylene Glycol / water mix has a specific heat of only 0.3.

Therefore, it takes twice as much heat to raise a pound of water 1° F than a 50/50 Ethylene Glycol mix; and over three times as much heat to raise a pound of water 1° F than a 50/50 Propylene Glycol mix.

Ultimately, what this means is that straight water can carry away 50% more heat than 50/50 Ethylene Glycol mix and 70% more heat than 50/50 Propylene Glycol mix per degree per unit volume.

Of course, how much heat a liquid can absorb without boiling is also a function of the pressure acting on that that liquid. The boiling point, also called "vapour point" is that temperature where a particular liquid turns to vapour - which we don't want.

Now - the more pressure a liquid is under, the higher its boiling point. This is precisely why cooling systems are pressurized. In the case of water, our most efficient coolant, we all know that at atmospheric pressure it boils at 100°C or 212° F. However, if we pressurize the water, its boiling point increases as follows:

We can see from the chart that, if we were running straight water, un-pressurized, it would boil at 212° F - which is no good as this is perilously close to the designed normal operating temperature of many modern engines. However, if we pressurized that water to even only 10 PSI, it wouldn't boil until 239° F. Many modern vehicle cooling systems are pressurized to 14-18 PSI, high performance systems to 22-24 PSI, and racing systems to 29-31 PSI. At the extreme end of the scale, Formula 1 race cars pressurize the coolant to as much as 50psi and have engine operating temps of about 265° F.

Now, at atmospheric pressure, both Ethylene Glycol and Propylene Glycol have higher vapour points than water, and this trend continues at higher pressures. That means they will not boil until they reach higher temperatures which in turn means a) that they can continue absorbing and transferring heat at temperatures higher than water is capable of and b) that they provide a greater safety margin against coolant boiling. Commercial coolant mixtures also have a lower freezing point than water and contain additive and conditioning packages to lubricate and inhibit corrosion in the cooling system.

Ultimately, which coolant to use will depend on your circumstances. For most, the benefits of an Ethylene Glycol mix or perhaps even a Propylene Glycol mix outweigh its lower efficiency. Of course, rather than run the normal OEM-recommended 50/50 mix, one can always custom tailor a mix to gain some of the advantages of a coolant mix while retaining as much of the efficiency of straight water as possible (e.g. a 75% water / 25% Ethylene Glycol mix). If you do - be sure to check that the vapour point and freezing point of the custom mix meets your system's needs. This is normally indicated in a little table on the bottle. However, for those running vehicles at the top edge of performance that see rigorous regular maintenance and are never subject to freezing temperatures - straight distilled water is undoubtedly the most effective liquid to use for coolant. Many folks who do run straight water will also add a small bottle of seal conditioner / corrosion inhibitor, such as Prestone Super Anti-Rust, to keep the water pump happy.

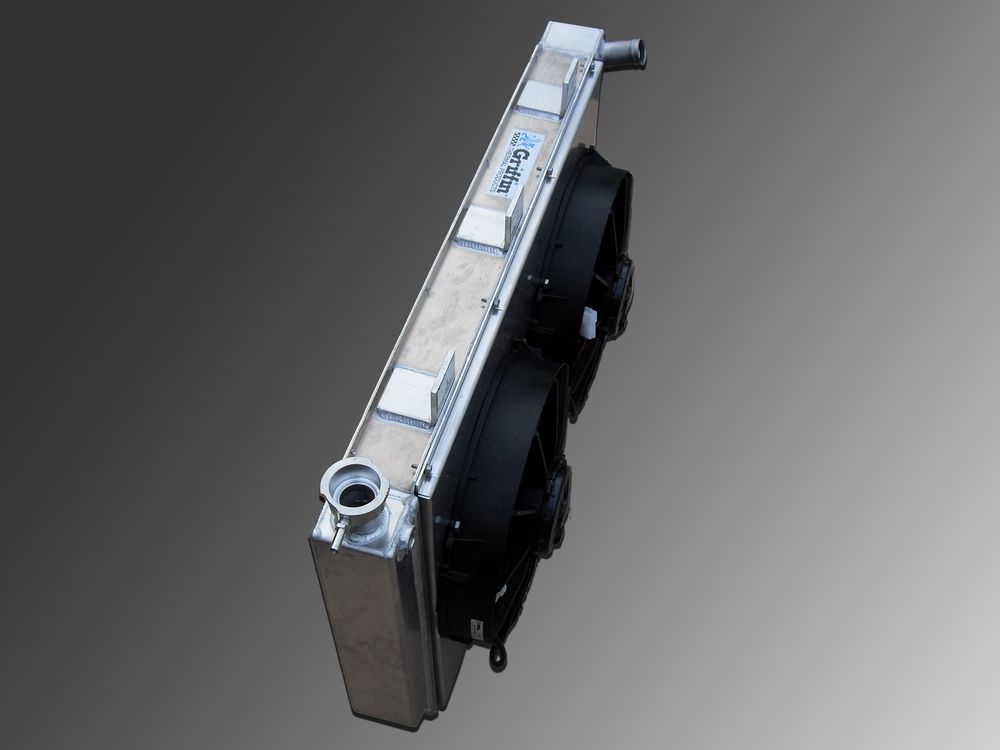

The only real choice for a performance cooling system is a "puller" fan - one that is mounted behind the radiator (in relation to the airflow) and sucks the air through the radiator. They are far more efficient than "pusher" style fans that mount in front of the radiator and push air through it.

All fans should be shrouded. Without a shroud your valuable airflow is dramatically reduced and all manner of complicated aerodynamics can go on, essentially leaving your expensive performance rad and fan combo stifled and unable to do its job before it had a chance.

Also, block pressure must be adequate to ensure uniform coolant distribution from the front to the rear of the engine. Low pressure can often result in insufficient cooling around the rear cylinders - which is why certain engine problems always show up first in the rear cylinders.

Steam pockets or localized coolant boiling can occur when excessive heat is generated (because of a lean condition, excessive ignition advance, or faulty cooling system) causing the coolant to reach its vapour point and spontaneously change state from liquid to gas - in other words - boil. This is sometimes referred to as "flashing to steam". The problem usually occurs first in the combustion chamber area because it is the hottest region. When this happens - a vicious cycle begins - cylinder head hot spots cause steam pockets - steam pockets tend to "stick" in the highest area (the head) - steam cannot contribute to cooling and displaces much needed coolant - the excessively hot cylinder head experiences detonation and/or pre-ignition - which in turn creates excessive heat which causes hot spots and localized coolant boiling and steam pockets to form and so on.

Adequate system pressure (along with a properly functioning cooling system and properly tuned engine) helps ensure that the coolant's boiling point is sufficiently high that the formation of steam does not occur and the cycle cannot begin.

Keeping the coolant under pressure also helps to prevent cavitation in the water pump.

The pressure in the cooling system comes from two sources. The first is from the action of the water pump pumping the coolant through the restricted passageways and plumbing of the cooling system.

Secondly, since the cooling system is a closed and sealed system and liquids are both incompressible and expand when heated, pressure in the system results from the normal expansion of the coolant in the system as it heats up. Normally 12-17 PSI pressure is created when the coolant expands as a result of going from ambient temperature to normal engine operating temperature.

The radiator cap serves to regulate maximum system pressure. A properly functioning cooling system in good working order will not normally generate excessive pressure. But under certain conditions like excessive heat generation or component degradation/failure system pressure can build well beyond normal. If this pressure were allowed to build unchecked, eventually component damage would occur - including hoses blowing off, seals being blown, and damage to the pump and radiator and any other component not able to withstand the elevated internal pressure.

To avoid this, a radiator cap (safety valve) is installed that is designed to open at a certain pressure. A calibrated spring normally holds a seal in place that keeps the system sealed and pressurized. However, if system pressure builds beyond the opening pressure of the cap, the spring force is overcome, the seal retracts from its seat, and the system is opened to atmosphere. When this happens, excess pressure and fluid volume is allowed to bleed off in a controlled manner to a recovery tank, through a small fitting located just above the seal seat.

The rad cap also serves as the point of entry for filling the system with coolant and for bleeding the air out. The rad cap must be installed at the highest point of the system. Often this is on the radiator itself, but when this is not possible due to the position of the radiator (i.e. the top of the rad is not the highest point in the system), the rad cap may instead be installed on a pressurized surge tank, as we shall soon see.

As we previously discussed, because pressure drop increases as the coolant flows from the pump, through the system, and back to the pump, system pressure is not equal everywhere. This is an important consideration in rad cap location. The rad cap operates on the system pressure at its location. If it were located in the highest pressure portion of the system (the pump outlet or radiator inlet), it would regulate system pressure based on that highest pressure, meaning pressure elsewhere (for example, in the back of the cylinder heads) would be something less than the rating on the rad cap. This could mean pressure in the critical engine passageways could be as much as 10 PSI or more lower than the rad cap pressure rating - which is not good for cooling performance. It's also difficult to accurately measure system pressure at all locations, so you probably wouldn't even know how low the pressure was in the cylinder heads with the rad cap installed in the high pressure side of the system. In other words, with this arrangement, you may install a 20 PSI rad cap and expect coolant boiling point to be 259° F, but actual pressure in the heads, where boiling would occur first, would be less - perhaps only 10 PSI, and therefore actual coolant boiling point would only be 239° F - some 20° F less than you think!  For this reason, the rad cap must be located on the low-pressure side of the system - either on the appropriate rad tank or on a remote-mounted surge tank.

Regardless of the location, the best advice is to run the highest rated cap the design and construction of the system will allow. For the dedicated seeking ultimate cooling performance, this may take some messy and risky trial and error - most often the result of a cap rated too high is a blown hose, but it could also lead to a cracked radiator. Some common values are:

Stock: 14-18PSI
High performance: 22-24 PSI
Racing: 29-31 PSI.

The rad cap also has a spring-loaded valve that can open to allow coolant entry back into the engine - described below in the section on "overflow tanks".

The thermostat is located in an area between the engine and the radiator. The classic small-block Chevy V8 located the thermostat on the "outlet" side of the motor, in the intake manifold. When cold, the thermostat was closed, and this prevented flow of coolant to the radiator. When the engine warmed up, the thermostat opened and coolant was allowed to flow to the radiator and back to the engine. The newer third- and fourth-gen GM V8's locate the thermostat on the "inlet" side of the motor - specifically in the inlet housing of the water pump. With this design, when cold, coolant is pumped through the rad, but is prevented from returning to the engine until the temperature of the thermostat has been reached, at which point the thermostat opens and the cooled coolant returns to the engine.

Similar to a rad cap, a thermostat contains a spring-loaded sealing mechanism - but instead of reacting to pressure, it reacts to heat. Most thermostats do this with what is called a "wax motor". The wax motor is a cylinder containing a wax pellet that acts directly on the thermostat piston. As the wax heats up, and expands, it forces the piston to open the seal and allow coolant to pass.

The Gen III/IV inlet thermostat location is designed to eliminate the following conditions / problems:

1. With the older outlet design, an air pocket could be created under the thermostat after the thermostat was installed following maintenance or service to the cooling system. Since the coolant was prevented from reaching the thermostat's wax motor, the thermostat didn't open and allow cooling to begin until the air pocket had gotten hot enough to cause it - which would happen much later than for coolant, and often too late to prevent overheating and component damage. This excessive heat would be bad for any engine, but can be especially damaging for aluminum components. Elimination of this air pocket is one of the reasons why old-school racers would drill a small bleed hole in the thermostat's flange.
2. The second problem is thermal shock that may occur at the radiator when hot coolant is released by the thermostat when the ambient temperature is near freezing. This sudden release of very hot coolant to a very cold radiator could cause thermal stress cracking in the radiator.
3. Because the old-style thermostats were located at the top of the engine where coolant temperatures are highest, and because any vapour or trapped air always seeks the highest point in a system and therefore could get trapped beneath the thermostat, this design can lead to unwanted thermal cycling as the area of the thermostat heats and cools causing the thermostat to repeatedly open and close. The newer inlet location design was designed to eliminate this potential thermal cycling problem.

The overflow bottle can be distinguished from the surge tank / recirculation tank in that:

• It is not pressurized
• It has no pressure cap. It may have a non-sealing cap to allow inspection, or no cap at all.
• It has only one line running to it - from the fitting located directly above the rad cap seal seat.
• It will often have a drain cock or valve installed in the bottom for manual draining (which wouldn't be present on a surge tank).

The differences between the two will also become more clear once we get to the section on plumbing.

Regardless of its exact form, a surge tank can be distinguished from an overflow tank by the fact that:

• It is a pressurized component.
• It has the distinctive filler neck opening at the top for mounting the rad cap.
• It will often have more than one inlet port (but not always).
• It will not have a drain cock or valve installed in the bottom for draining.
• It will have an outlet port so that coolant can flow / circulate through it.
• It still requires an overflow tank.

It is also important to note that the surge tank does not take the place of the overflow tank - it is used in addition to the overflow tank. This can be seen in both the examples above where you can clearly see the fitting in the filler neck (the overflow tube) that connects to the overflow tank - exactly the same way it does when the filler neck / rad cap are mounted directly to the radiator.

Assuming the gauge sending unit is properly located, an engine typically runs most efficiently when the coolant temperature is kept around 200° F. This comes back to maintaining the proper operating temperature again. At this temperature, the combustion chamber is warm enough to completely vaporize the fuel mixture for improved combustion, and the oil’s viscosity is at the right point so that it can properly lubricate the engine and present minimal parasitic drag. An engine that is too cold is no good! Do not try to design your cooling system so that your engine runs all day at 160°F!

For most "normal" engines, 250°F is about the greatest water temp indication you should tolerate. Beyond this and the engine should be shut down or allowed to idle until it cools down. Incidentally, this is another advantage to electric fans. Because an electric fan can continue to run when the engine is not running, and because hot coolant will rise and be replaced by cooler coolant, and because the rad inlet is at the top and the engine inlet at the bottom - coolant will circulate and you can actually cool the engine even when it isn't running.

How to Build a Killer Cooling System

OK, so now we know all the basics - what the parts are, what they do, how the system flows and is plumbed, what pressure does for us, etc. Now - what distinguishes a good, capable cooling system from a lousy, inadequate one? How do you begin to design or build a cooling system for your rig?

The quick answer is, you should maximize:

1. The flow of the coolant - the higher the better. More flow will always equal more cooling. Do this with a high-flow water pump, large hoses and passageways, large radius bends, and keeping the passageways as free of restrictions and blockages as possible.
2. The flow of air through the rad - quality, high CFM fans (like those from SPAL), properly shrouded, as well as appropriate bodywork/ducting to ensure air flows through the rad and not around it. Don't lean the rad way back, as air will flow over rather than through it.
3. The surface area of the radiator - use the biggest you can possibly fit. More details on rad tech to come shortly but again, short story is - buy an aluminum one from Griffin!
4. The percentage of water in the coolant - for cooling, as we have discussed, water is best - use as high as a percentage as you can get away with (without freezing, boiling, or corroding the system)
5. Pressure. Use the highest rated rad cap you can without blowing a hose or cracking the rad or some other component. More pressure equals higher vapour point (boiling point) which not only means less chance of steam pockets or boil-over, but also that the coolant can continue carrying away heat at temps beyond which lower pressure systems would have maxed out.
6. Turbulence. Turbulent (or rough) flow of coolant through the rad ensures that as much hot coolant as possible is exposed to the cooling surfaces of the tubes. If flow is too smooth (laminar), only a thin outer layer of coolant is cooled in the rad and an undisturbed, hot core of coolant goes uncooled. That's uncool! Griffin have some super-trick ways of ensuring turbulent flow in their high performance rads.

Here are Griffin's "10 Commandments for Maximum Cooling". I agree with them all (I'm sure they'd be relieved to hear that ;-) as they apply to most normal, street-driven vehicles. For race or other high-performance vehicles the only exceptions I would take are with regards to the the pressure of the rad cap and the percentage of Ethylene Glycol or Propylene Glycol in the coolant, as we have discussed.

1. Thou shall make room for an adequate cooling system in the design of your engine compartment.
First things first. When planning your performance vehicle, remember that you’re building it to drive, not to sit and steam. Plan adequate space for the cooling system including the radiator, fan, shroud, over flow tank and mounting brackets. Talk with a cooling specialist to help you size the system for your vehicle, engine and driving habits. Consider the investment compared to the total cost of the car.

2. Thou shall shroud thy radiator when using a fan.
Fans move air through the radiator assisting in cooling the engine. A fan without a shroud is better than no fan. But, consider this. At idle or cruising speeds, you need the entire cooling system working at its optimum. An unshrouded fan is moving air through only the portion of the radiator equal to the surface area of the fan. For example, on a ’32 Ford, the area of a 15.50” fan is about 189 sq. in.; the core of the radiator is approximately 371 sq. in. This means that almost 49% of the unshrouded radiator is not receiving any benefits of the fan. Shrouding your radiator lets the fan pull air through the entire core.

3. Thou shall use an electric fan.
Rule of thumb. Only choose a mechanical fan over an electric fan if it’s your farm tractor. An electric fan is preferred because when you need a fan the most (at idle or cruising speeds) an electric fan is delivering maximum air independent of engine RPMs. Fans that move 2000-2300 CFMs are worth the investment. Preference should be given to a “pull” vs. a “push” fan. Mounted on the engine side of the radiator, a pull fan does not interfere with air flow at highway speeds. All shrouded fans should be on the engine side of the radiator.

4. Thou shall consider airflow or how a radiator cools.
Without adequate air flow, a radiator is just a reservoir for hot water. Coolant transfers heat to the tubes; the tubes transfer heat to the fins; air moving through the fins dissipates the heat from the radiator. You need sufficient openings to the radiator that channel adequate air to the entire surface area of the radiator. You must have a radiator design that allows the air to pass effectively through the radiator (wider and taller is better than thicker). You must consider how the heat will be evacuated from the engine compartment.

5. Thou shall use the proper water pump pulley ratio.
To obtain the maximum operating efficiency rate for your water pump at highway speeds, you should overdrive the pump by 30-35%. Check your pulley selection. Most after market pulleys are a 1:1 ratio. For a 30-35% overdrive, the crank pulley should be approximately 7 7/8” and the water pump pulley approximately 5 3/4”. This overdrive provides proper coolant flow from the engine and through the radiator.

6. Thou shall consider the effects of the pressure cap.
The higher rated the pressure cap, the hotter the water has to get to boil. One pound of pressure raises the boiling temperature 3°F. A 16-pound cap raises the boiling point to 268°F. If your engine is designed to run at 200°F, a 14-16-pound cap should be sufficient. Running a higher pressure cap to prevent boil over is putting a band aid on another problem that needs to be fixed. Higher operating pressure places additional stress on the entire engine system and increases the potential of hoses bursting and possible injury.

7. Thou shall understand the operating temperatures of today’s modern engines.
All engines have “normal” operating temperatures. Running engine temperatures well above or below recommended temperatures could cause damage. Most of today’s engines operate in the 180°-210°F range. Pollution laws, new oil blends and higher combustion gasoline have forced engine design changes that have increased operating temperatures over the past decade. Consider your engine’s normal operating temperatures when selecting your radiator’s cooling capacity.

8. Thou shall always use a thermostat.
The thermostat controls engine coolant temperature. It stops the flow of coolant through the radiator until the coolant reaches the thermostat’s preset temperature. Operating your engine within its temperature parameters reduces wear, helps control emissions and turns any moisture in the crankcase to steam where it is removed by the PCV system. Select the right thermostat for your engine’s operating temperature range.

9. Thou shall protect thy cooling system with recommended coolant.
It is essential to use a premium coolant that protects the radiator, other metal parts and seals. Today’s coolants are a scientific blend that normally includes water wetter and corrosion inhibitors. Use of a coolant that contains no silicate is recommended. Silicate is an abrasive and can cause gel formation and water pump failure. A 50/50 mix of coolant and water provides the best overall cooling efficiency. Proper maintenance (regular flushing and changing of coolant) will extend the life of your system.

10. Thou shall spend thy money wisely.
If you are having cooling problems, begin by looking at the least expensive fixes first. 1) Add an electric fan. 2) Shroud your fan. 3) Check your belts and hoses. Slipping belts or collapsed hoses mean trouble. 4) Check your radiator cap. 5) Flush and refill with premium coolant. 6) Use the proper thermostat. 7) Clean the radiator of foreign materials. 8) Overdrive the water pump 20-30%. 9) Check your water pump. Should cooling problems persist, it may be time for a new performance radiator from Griffin. Call the Griffin Customer Service Department at 1-800-722-3723 for assistance in selecting the correct radiator for your requirements.
** WARNING: Improper wiring can cause electrolysis and destroy the radiator. Please make sure radiator is not used as a ground. **

The Radiator

First - let's just go over the main parts of the radiator, because, as usual, some folks insist on using terms loosely or incorrectly which can lead to confusion.

The tanks are connected by the tubes. Coolant enters the tank with the inlet port, and flows between the tanks via the hollow tubes (which are actually very wide and thin in cross section, not round). Sandwiched between the tubes are the fins. The part that forms the actual joint between the rows of tubes and the tanks is called the header - you can't distinguish it in this pic, but you will see a pic of the header later when I show you a Griffin Rad being built. The combination of all the tubes and fins together is called the core. Thus, the two major components are the core and the tanks. The core will always have many rows of tubes between the top and bottom of the rad, but it may also have one or more rows of tubes (from front to back) for each "row" between the tanks. You can't easily tell this, because the rows of tubes would all be one behind the other.  Some folks interchange the word "core" for "tubes" so that you may hear them say they have a "3-core rad". What they mean is that the core of their rad uses 3 rows of tubes, one in front of the other, for each "row" between the tanks - not that the rad has 3 complete cores!

There is no one magic formula to spec'ing, buying, or building a top quality radiator. There are many complicated inter-related factors at play and designing and building a great radiator is both art and science. Fortunately, this is something Griffin Thermal Products are very, very good at. Keep in mind, as you read the following considerations that a radiator is only as good as the sum of its parts, that there is a lot more to a quality radiator than meets the eye, and that there are few hard-and fast rules, despite what some would have you believe (for example, you can't say that a 3-row rad is always better then a single-row rad.)

As you read this section, keep in mind that the job of the radiator is to expose as much hot coolant as possible to the inside surfaces of the rows of tubes that connect the radiator tanks. Heat is thus transferred from the coolant to the tubes. From the tubes, the heat is transferred to the fins. Airflow passing over the fins then dissipates the heat into the air.

That said, here are some of the factors to keep in mind when selecting or spec'ing a radiator:

Material

There is only one choice of material for a top-quality radiator today - aluminum. Not only does it have a very efficient rate of heat transfer  - it also has far superior structural strength compared to an older copper core radiator. This means the radiator will be able to withstand higher system pressures. The greater strength of aluminum also means the aluminum radiator can be built with wider tubes which allow more direct contact between the coolant and the tube surface as well as more contact between the fins and tube, both of which increase the radiator’s capacity to dissipate heat. Because of these wider, more efficient tubes, an aluminum radiator with 2 rows of 1" tubes is equivalent to a copper radiator with 5 rows of 1/2" tubes! The greater structural strength of aluminum also means that radiators can be built with very wide cores without risk of collapse, which provides greater coolant capacity and greater cooling surface area.

All things considered, an aluminum radiator will be more efficient, longer lasting, stronger, and lighter than a traditional copper radiator.

Surface Area

Surface area is king. Get the biggest rad you can fit (length x width). In fact, if maximum cooling performance is your goal - consider getting a bigger rad than you can fit and then building the chassis around the rad. This is exactly what I did when building the cooling system for my 525HP LS2. I knew it made a lot of power. I knew power = heat. So I chopped off the whole front of the truck and built a new front end specifically around my Griffin rad. Surface area - yes, it's that important!

There used to be an old-school rule that stated that a rad should be 1 square inch for every cubic inch of engine displacement. This was an old rule from back in the days when making 1hp per cu. in. was considered pretty high performance. These days engines are routinely making more than 1hp per cu. in. so the rule needs revising since cooling capacity is related to power and not just engine size.

For high performance use - like offroad racing, my rule of thumb is to size a rad based on 1.1 sq. in. per hp produced. This is a fairly conservative rule of thumb, which works well for aluminum motors.

Here are some common rad sizes and their areas in square inches:

Turbulence

It is very important that the coolant flowing through the radiator's tubes does so in a turbulent or "rough and tumbling" fashion. This is so that the maximum amount of hot coolant can come into contact with the surface of the tubes so maximum cooling can occur. If the flow is not turbulent, but instead is smooth or "laminar" in nature, a thin boundary layer of fluid will tend to "stick" to the inside walls of the tube, insulating the rest of the fluid from the cooling surfaces of the tube. The result is, the outer boundary layer cools, but the hot inner core never gets cooled.

The following diagram illustrates the difference between laminar (bad!) and turbulent (good!) flow.

There are a number of ways a radiator or cooling system designer can achieve turbulent flow. They include:

• Ensuring sufficient velocity of the coolant flow.
• Optimal tube shape. Wider tubes with small cross-sectional area allow for better turbulence. This is another example of the advantages of aluminum  - it has the strength required for fewer, wider tubes.
• The use of special techniques in the construction of the tubes themselves - such as the addition of "turbolators" or small fin-like projections that promote turbulent flow inside the tubes. Such techniques require advanced engineering and flow modelling to strike the best balance between promoting turbulence while maintaining adequate flow and minimizing pressure drop through the radiator.  In their latest high-performance products Griffin employ a patented ported Micro Extrusion tube construction technique using a 3000 series aluminum alloy for durability and enhanced fluid turbulation.

Thickness

If you have maximized the surface area and there's absolutely no way to go any bigger, then there may be some advantage to using a thicker rad.

Adding thickness to a radiator does not increase its efficiency to the same extent as increasing its surface area does, but as long as there is sufficient airflow it will not decrease the efficiency.

Thicker radiators do have slightly more airflow resistance than thinner radiators but the difference is minimal at speed when there is good airflow through the radiator. Where issues can crop up is at idle when the fan(s) alone must supply the needed airflow. Use of a quality, properly shrouded fan or fans is a must to produce the required airflow at idle and slow-speed conditions. Of course, this is true to some extent in all case, but especially so with particularly thick radiators.

You may have heard people claim that installing a thicker radiator resulted in a net drop in cooling ability. This may be attributed to one of two possible causes. First, the fan(s) and shrouding may be inadequate to supply the required airflow. Second, in the case of older radiators (especially copper) that used narrow tubes with fairly large cross sectional area, the increase in thickness and therefore tubes, actually reduced coolant velocity to the point that the coolant flow lacked the required turbulence. In no case, however, can a drop in cooling with a thicker rad be attributed to the air getting fully heat-soaked before it has flown completely through the thick rad - this is an old wives' tale that may have come about as a result of misdiagnosing one or both of the above conditions.

Rows

One row? Two rows? Three rows? (Or erroneously, single-core? Double core? Triple core?)  Which is the best? There is no hard and fast rule here. The number of tubes in each row (from front to back) is only a part of a radiator's overall design. One cannot say that two rows are always better than one. It all depends on the size and profile of the tubes, as well as all the other design features of the radiator - not the least of which is the overall size. The best bet is to choose or spec a radiator using the other criteria for which there are firm guidelines (aluminum, largest area possible, etc.) and then leave the other design elements, such as the number of rows, to a trusted expert such as Griffin.

Fin Density

Normally, the greater the density of fins between the tubes, the more surface area there is to be subjected to cooling airflow. However, there is a limit - more is not always better and too much of a good thing becomes a bad thing. Imagine a fin density so high it was almost a solid - obviously that would not be optimal for cooling as no airflow could pass. Another factor involved in the optimal fin density calculation is the operating conditions to which the radiator will be subjected. Dirty, clogged fins are inefficient and even useless, and extremely dense fins are very difficult to keep clean. Not only that, but the fins are fairly delicate and cleaning them can sometimes cause damage that again reduces their efficiency or renders them useless. For these reasons, often the best choice for an off-road rig is a slightly less dense fin count compared to a street or track car - and the overall result will be better real-world, in-service cooling. Griffin understands this and, unlike some others, will not just sell you the product that sounds best on paper (highest fin density). Rather, they will take the time to understand your application and will either design a custom product for you or sell you an off-the-shelf product best suited to your actual needs.

Flow - cross and down

Almost all radiators today are "cross-flow". This simply means that the tanks are on the sides of the core, and that the coolant flows horizontally through the tubes from one tank to the other.

Many, many myths and old wives' tales can be traced back to the old down-flow style radiators and their design and construction. We will deal with them in a separate section. For now, unless you are trying to reproduce a classic hot-rod look or are intent on replicating the factory setup in a rig that originally used a down-flow radiator, know that a cross-flow radiator is the better design because:

• In a cross-flow radiator, the radiator cap (pressure relief valve) is located on the low pressure (non-inlet) side of the radiator. This prevents the pressure created by a high-flow water pump from forcing coolant past the radiator cap at high engine RPM.

• Because the rad cap is really a pressure-sensitive relief valve that sets the system pressure, when it is located on the high pressure side (as it is in a down-flow radiator) it "senses" the high pressure side and sets the system pressure based on this and therefore overall maximum system pressure is less (the valve opens when the high-pressure side reaches the cap's rating). In contrast, when the cap is located on the low pressure (non-inlet side), as it is in a cross-flow radiator, the cap "senses" and sets the system pressure based on the low-pressure side - with the result that overall system pressure is higher in this configuration. For example, a 22PSI rad cap located on the low pressure side of a cross-flow rad effectively becomes a 10PSI cap if it were located in the high pressure side of a down-flow radiator.
• Because the rad cap on a down-flow radiator is located on the high-pressure inlet side, coolant flow/velocity must be reduced so that rad pressure doesn't exceed the cap's rating. As we have seen, when flow is reduced so is cooling efficiency,and when velocity is reduced, so is flow turbulence and therefore cooling efficiency.

Flow - single-, dual-, triple-pass

Many people mistakenly believe that a dual-pass radiator cools better because the coolant "goes through the rad twice" and therefore "spends longer in the rad and cools more". We know that this is not the case, because "time spent in the rad" is not a defining factor of how well a rad cools, and that flow, turbulence, and delta-T have a far greater effect on cooling efficiency than time. In addition, there are a great many aspects of radiator design, including tube width, tube height, number of tubes, tube construction, and fin count that, in addition to flow pattern, all combine to determine the cooling efficiency of a radiator.

So, the question is - does a dual-pass rad cool better or worse than a single cross-flow rad?

The answer is "it depends". To understand why this is the case, we need to recall the principles of Pump Performance Curve and Total System Pressure Drop and apply them to the dual-pass rad to see what is happening.

We already know that pressure and flow are related, and therefore how increasing the effective length of the cooling tubes with a dual-pass rad increases pressure drop (backpressure).

If we examine the pump performance curve, we can also see how the increased head required by the increased backpressure of the dual-pass rad also causes a reduction in flow because the pump always performs somewhere on its curve, and since its head has increased, the flow it produces will be less. The following diagram illustrates the concept, but once again the values are not intended to be representative of any real-world conditions (I just made them up to illustrate the concept).

The intersection of the red lines on the performance curve represents the flow and head of a theoretical single-pass rad - say 90 GPM at 8 PSI head. The intersection of the blue lines on the performance curve represents the flow and head of a theoretical dual-pass rad - say 70 GPM at 14 PSI head.

How large an effect on pump flow the increased head required for a dual-pass rad has, depends on the specific pump's performance curve and how large a part of the overall system pressure drop the rad is.

Now, to understand the dual-pass rad's effect on coolant velocity, we need to introduce one last equation that relates flow, area, and velocity.

Flow in a pipe (or radiator tube) is equal to the cross-sectional area of the pipe multiplied by the velocity of the fluid. If that concept is difficult to grasp, it may help to think of the units involved, as in:

Flow (q) = Area (A) x Velocity (V); or

cubic feet per minute = square feet x feet per minute

(note: 1 cu ft = 7.48 US gallons)

This makes sense - the larger the pipe and/or the faster the fluid is moving - the greater the flow (the more fluid will pass through the pipe in a given time).

Now, since q=AxV, this means that if you decrease the area or the velocity, the flow decreases; and by the same token, if flow remains constant and area is reduced, the velocity or speed of the fluid must increase.

In a dual-pass rad like the one pictured above, the coolant only has half the number of tubes to flow through at a time - that is, the cross sectional area is halved. And because q=AxV, since the area has halved, for a given flow produced by the pump, the velocity of the coolant doubles. Because velocity increases, so does turbulence. Velocity also has a beneficial effect on the heat-transfer coefficient (how well the radiator sheds the heat in the coolant).

Lastly, in a dual-pass radiator, the delta-T (temperature difference) between the coolant and the airflow will be less on the second pass than it is on the first pass - which means heat transfer from the coolant to the air will be less on the second pass than the first.

So again, in general, when compared to a single-pass rad, the dual-pass rad has some degree of:

• Increased pressure drop across the rad from the inlet to the outlet.
• Decreased flow rate.
• Higher velocity and more turbulent coolant flow, with attendant increased heat transfer coefficient.
• Intermediate delta-T between the coolant and airflow on the second pass.

Of course, all this is also a circular process. Area is reduced -> velocity goes up -> pressure drop goes up -> head goes up -> flow goes down -> velocity goes down (remember q=AxV at all times) -> pressure drop goes down -> head goes down -> flow goes up -> and so on (the system quickly reaches a point of balance or equilibrium, it just isn't easy to calculate with a simple equation).

There are two final considerations with regards to a dual-pass radiator compared to a single-pass:

• A dual-pass configuration is ideal for locating the rad hoses on the same side of the engine, as is often the desired configuration with "LS" motors. This is especially important if you don't have room in a cramped engine compartment to run an upper rad hose over the top of the fan(s).

• In a dual-pass radiator, the rad cap is located on the tank that doesn't have the inlet and outlet. This essentially positions it between the high pressure inlet and the low-pressure outlet - or in a region of "medium pressure". This is an important consideration in choosing a rad cap pressure rating for a dual-pass radiator. However, this region of "medium pressure" is a relative term given the greater total pressure drop through a dual-pass rad.

How all these factors balance out and therefore the overall effect on cooling system performance of replacing a single-pass rad with a dual-pass rad depends on which, if any, of these factors is the limiting factor on that system's performance. Attempting to calculate and quantify this is a complex problem requiring advanced knowledge of fluid dynamics and thermodynamics and advanced modelling techniques. It is likely well beyond the ability of any enthusiast.

The best we can do is understand the general principles at play, and then consult the experts as to whether or not a dual- or even triple-pass rad can or will be beneficial to your cooling system. One cannot definitively say that a dual-pass rad always cools better than a single-pass rad or vice-versa, but there are certainly cases where a dual-pass radiator can be very beneficial if applied to a properly engineered cooling system. The best advice I can offer is: before considering a dual-pass or triple-pass radiator for your vehicle be sure to consult cooling system professionals like those at Griffin Thermal Products.

Inlets and Outlets

Inlets and outlets should be chosen to match the diameter of the water pump inlet and outlet. In the case of the "LS" motors the water pump outlet is 1.25" and the inlet is 1.5". They can be placed on either side of the rad, either together (as in a dual-pass radiator) or on opposite sides (as in a single-pass or triple-pass radiator). For older conventional V8's, Chevy engines normally had the rad inlet on the left and the outlet on the right. In Fords they were reversed with the inlet on the right and the outlet on the left. On the older gen I GM V8's the water pump outlet was usually 1.5" and the inlet 1.75".

Filler Neck / Rad Cap Location

As has been covered, if you are going to use a radiator with a filler neck and mount the rad cap to the radiator, the filler neck should always be placed on the low-pressure tank - i.e. the one that doesn't have the radiator inlet.

Additional Ports & Plugs

Due consideration should be given to the location and size of steam ports and surge-tank vent ports. Remember they should be located on the low pressure side, just below the rad cap. Most high performance rads do not incorporate a built-in drain plug at the bottom since this can create an unnecessary potential leak point and most racers wouldn't use a drain port for maintenance since the whole system usually comes apart for inspection and replacement as necessary when maintenance is scheduled. Griffin does not normally install a drain in their race radiators since most racers don’t use a drain, and, given the wide variety of chassis a race radiator can be used in, it would be impossible to find a location for the drain that would suit every possible application.

Airflow

The best radiator does no good without adequate airflow. Airflow is measured in cubic feet per minute, or CFM. In your design, be sure to allow for adequate airflow at both high and low vehicle speeds. Airflow design for low speeds is fairly easy - you need one or more good quality, powerful fans and a good, complete shroud. Without a shroud you can loose as much as 50% of the CFM you would otherwise have.

Ensuring good airflow at higher speeds is more difficult, because high-speed airflow can do weird and wonderful things and you need to account for aerodynamic flow and different air pressure zones. Rather than teach a class on aerodynamics, here are some basic tips:

• Radiator location and angle is critical to ensuring good high-speed airflow. The best installation for cooling purposes is to have the rad stand straight up vertically in the airflow. Of course, this doesn't help the car's aerodynamics, visibility over the hood, aesthetics, or engine compartment packaging very much; and brings us in to conflict with the rule about using the largest rad possible. If we install a very tall rad, there often just isn't room to stand it up straight. As a result, many people lean the rad back at an angle to lower the overall height in the chassis, while still fitting a large rad. You have to be careful when doing this though - if you lean it back too far, especially if you have poor ducting of the air to the rad, air will flow up and over the rad instead of through it. When this happens, a high-pressure zone is created behind the rad, and as we know, air flows from high to low pressure, not the other way around. This is based on the same principle by which airplane wings create lift and a carburetor's venturi works. What this can mean is, at high enough speeds, the pressure behind the rad can be so much higher than the faster, low-pressure air flowing over the rad that no air is able to flow through the rad - even with the fans on. It seems strange, but physics can be a bitch that way sometimes. I personally believe that quite a few folks tend to lean the rad back way too far without understanding or testing the effects of high-speed airflow and the high pressure zone created behind the rad. If you do happen to do this - the car will overheat and nothing else you do will help. You simply have to have good flow through the rad at the speeds the vehicle will run.
• In conjunction with maximizing airflow through the radiator, your design must allow adequate engine-compartment ventilation to allow the air that flows through the rad to exit the engine compartment. Not because it is hot air and would otherwise heat up the engine (the engine's making plenty of its own heat already) - but to avoid creating a high pressure region in the engine compartment that would prevent further airflow through the radiator.
• Minimize the objects in front of the rad that block airflow. There are usually a lot of things that take up space in front of the rad - the grill, lights, winch, auxiliary coolers, etc. All of these rob the rad of its airflow. Your design should minimize the obstruction in front of the rad that block airflow.
• Depending on the fin density, a radiator has somewhere around 1/3 of its surface area as open space through which the air flows. Maximum cooling can occur when the grill or protection is such that it has no less than 1/3 open space. In other words, try to design the grill so that it doesn't add to the restriction of airflow.
• If you mount auxiliary coolers (like a power-steering cooler) in front of the rad that rely on the rad's fans to pull air through it, keep the gap between the cooler and the rad down to 1/4 - 3/8", 1/2" max, to ensure air is pulled through the cooler and not around it before entering the rad.
• Creative bodywork and ducting may be required to ensure maximum airflow through the rad. Just because it doesn't look like there's anything impeding airflow, doesn't mean that there isn't - high air pressure is the invisible killer of airflow. For example, on many production "sports" cars, the lower air dams are there not just to scrape on every curb and bump, but because they are critical in preventing an airflow-induced high-pressure zone behind the radiator that can severely impede airflow through the rad.

Fans

As previously mentioned, electric fans offer superior flow, mounting flexibility, and computer control compared to mechanical fans. Years ago, it used to be that mechanical fans offered the best performance, but today that isn't so. Mechanical fans are subject to problems with vibration due to air turbulence when run at high RPM. This can lead to premature wear on the water pump. Mechanical fans can also consume up to 20 or more horsepower. Viscous thermo-clutches used to control mechanical fans can be inconsistent and unreliable and offer no computer control. Mechanical fans are limited in the airflow they can provide at idle and slow speeds because they are turning at low RPM. Because the mechanical fan attaches to the engine and not the radiator, clearance must be maintained so that any chassis or engine-mounting flex doesn't cause the fan to eat the radiator (which is bad for cooling!). This makes shrouding a mechanical fan a more difficult and cumbersome affair that consumes valuable under-hood space.
