Can-Am Outlander 1000XT - "Under the Hood" By Bill "BillaVista" Ansell |
 |
|
IntroductionA look "under the hood" of my 2014 Can-Am Outlander 1000XT. Video at the end of the article showing tips on removing and reinstalling 3 basic components of the Outlander - the front "gauge support" panel, the "console" panel, and the seat; and what's located beneath them.
|
 |
Under the Front Gauge Support Panel |
|
 |
Can-Am call this front panel the "gauge support". |
 |
Underneath you gain access to the CVT filter, the front fuse box... |
 |
...vent tubes for the:
|
| Note that Can-Am calls the vent hoses: "Hose, Polyurethane Evaporative emission component." | |
 |
... the engine air intake, the electric cooling fan vent... |
 |
...and the coolant reservoir. |
 |
The front fuse box contains 6 relays... |
 |
... and 11 fuses. |
Under the Seat |
|
 |
Under the seat... |
 |

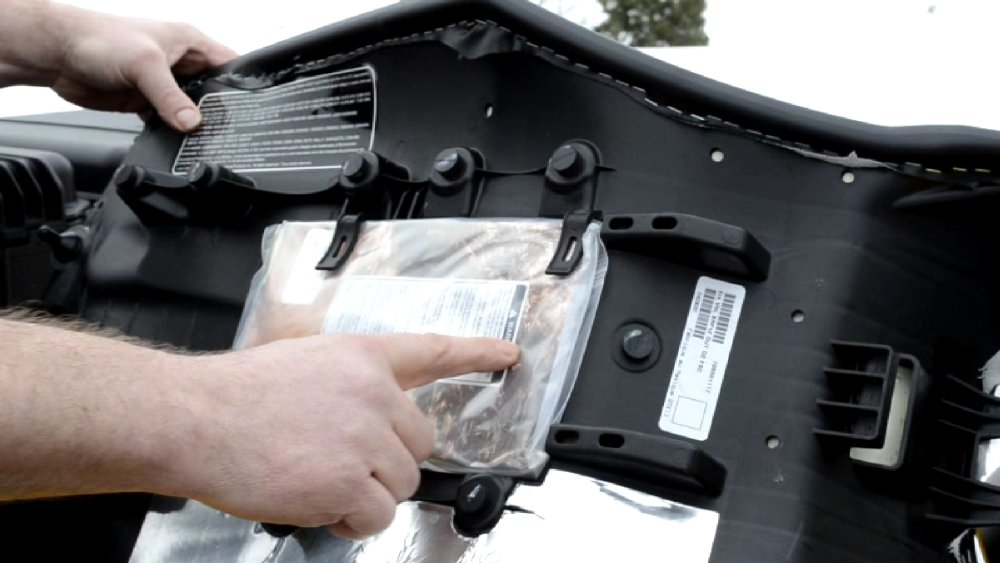

... there is storage for the operator's manual... |
 |
... and access to:
|
 |
The rear fuse box contains 3 fuses. |
Under the Console Panel |
|
 |
Can-Am call this panel the "console". |
 |
Underneath you gain access to the air filter. |
Video demonstrating how to remove and re-install the components and a look at what's underneath. NOTE: There is a mistake in the video where I incorrectly identify the vent hoses. The correct identification is as follows: The cluster of 4 are:
And the single skinny one on the right side (which I erroneously called a fuel vent) is actually the electric cooling fan vent hose.
|
|
|
|
|
|
|
